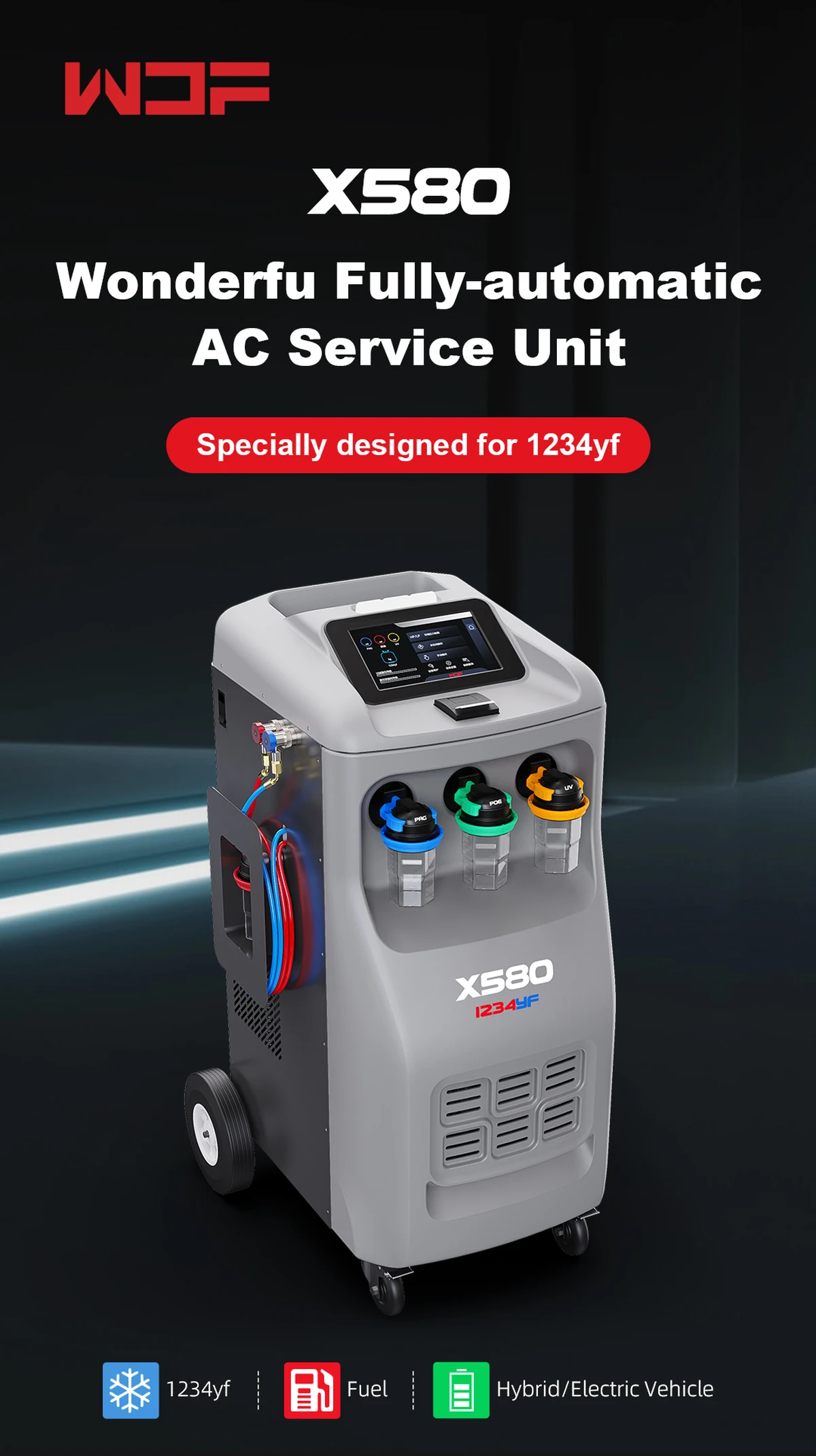

WONDERFU X580 R1234yf Fully-automatic AC machine with database and printer
Item number: DE1822
Description
Reviews
WONDERFU X580 R1234yf Fully-automatic AC machine with database and printer

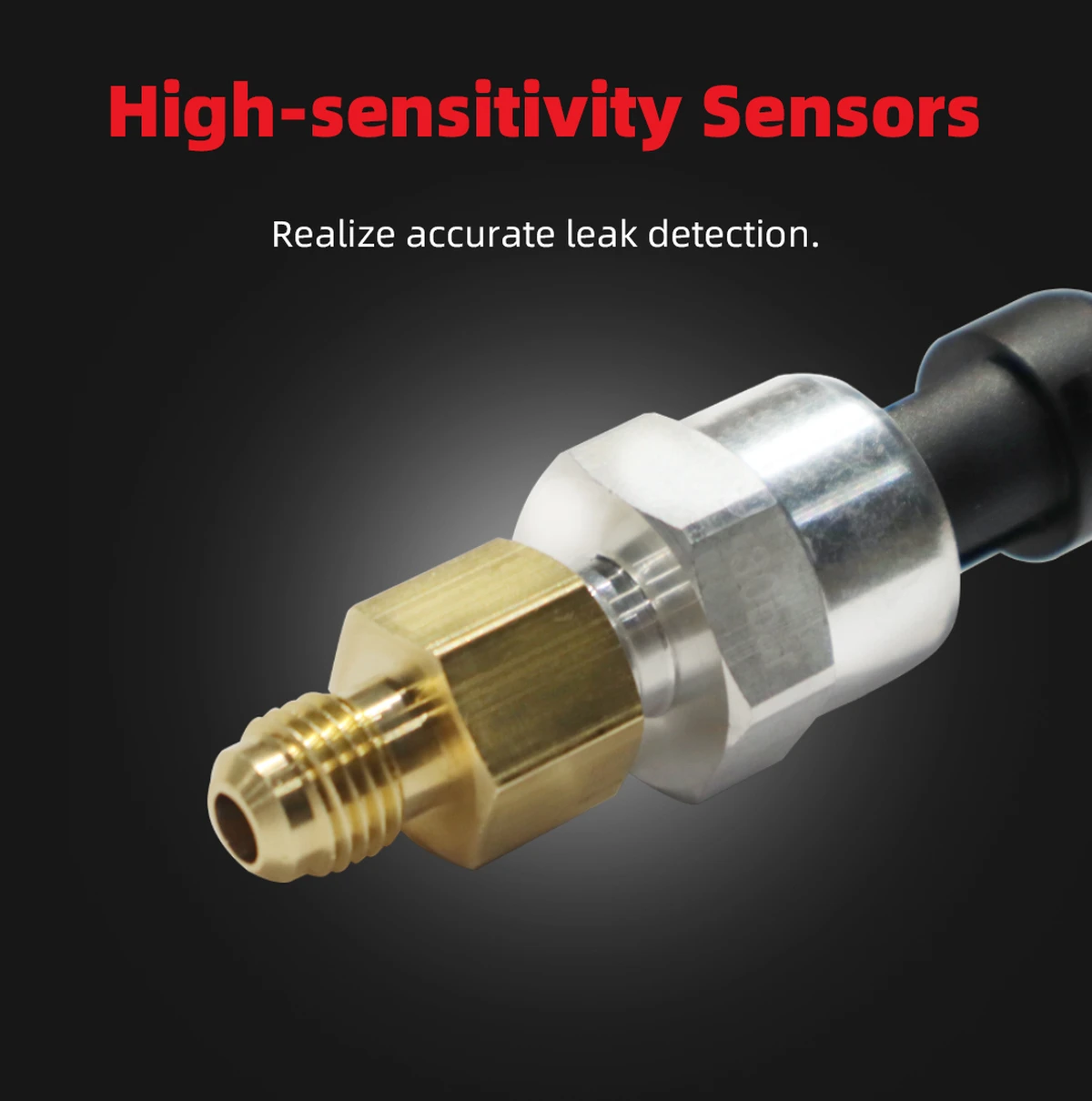

The fully automatic 1234yf service unit meets the highest standards for A/C systems. Equipped with a 10-inch touchscreen, five digital scales, four hermetically sealed oil bottles, and four pressure transducers, the X580 combines all maintenance functions in a single device. The 1234yf refrigerant is classified as "highly flammable," and operators must acknowledge this risk. Thanks to its leak test function, dual ventilation system, and over 95% recovery efficiency, the X580 effectively eliminates any potential refrigerant build-up in the unit or leakage without warning.
Features:

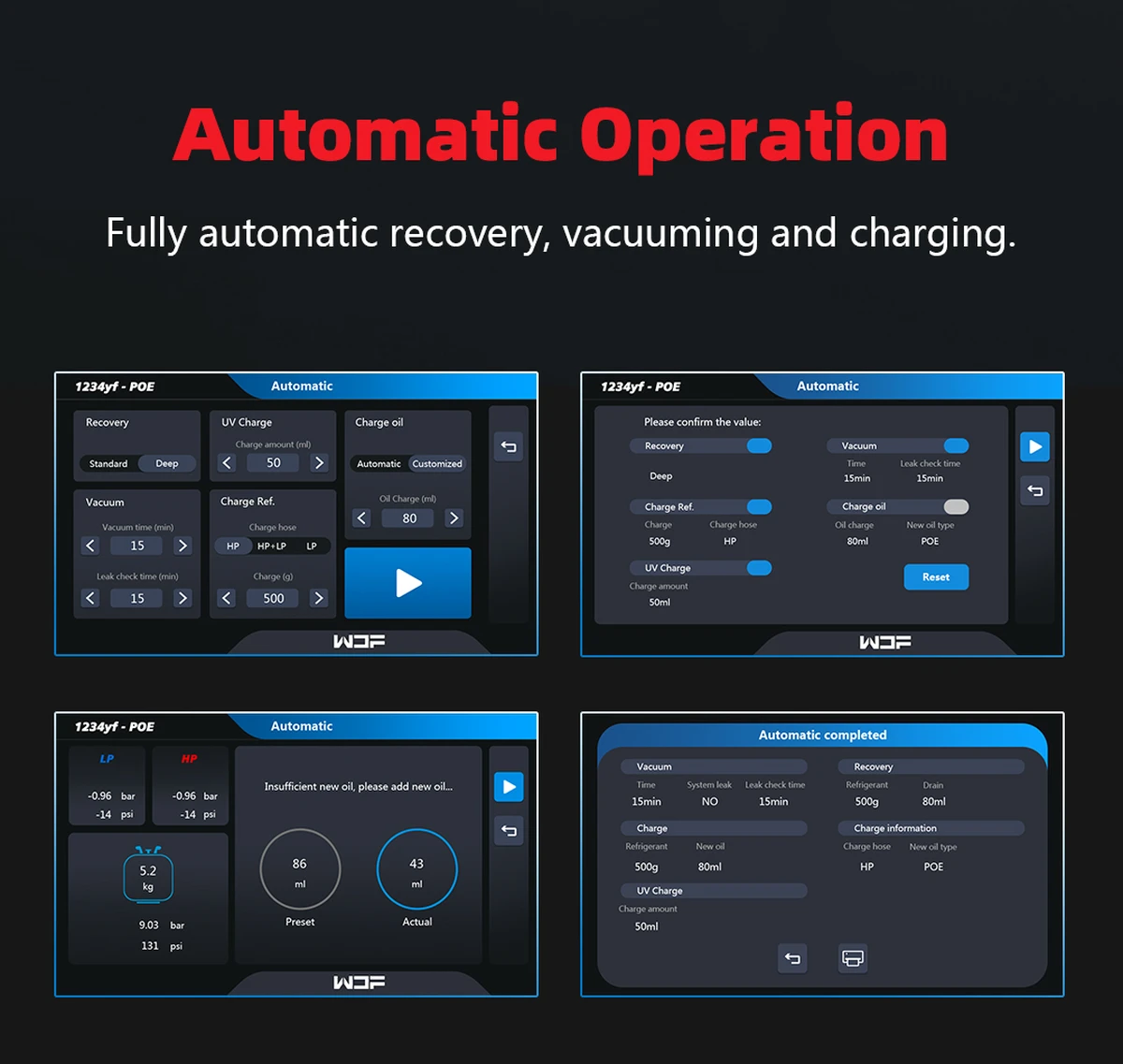

- Fully automatic: it can do recovery, vacuum, charge.

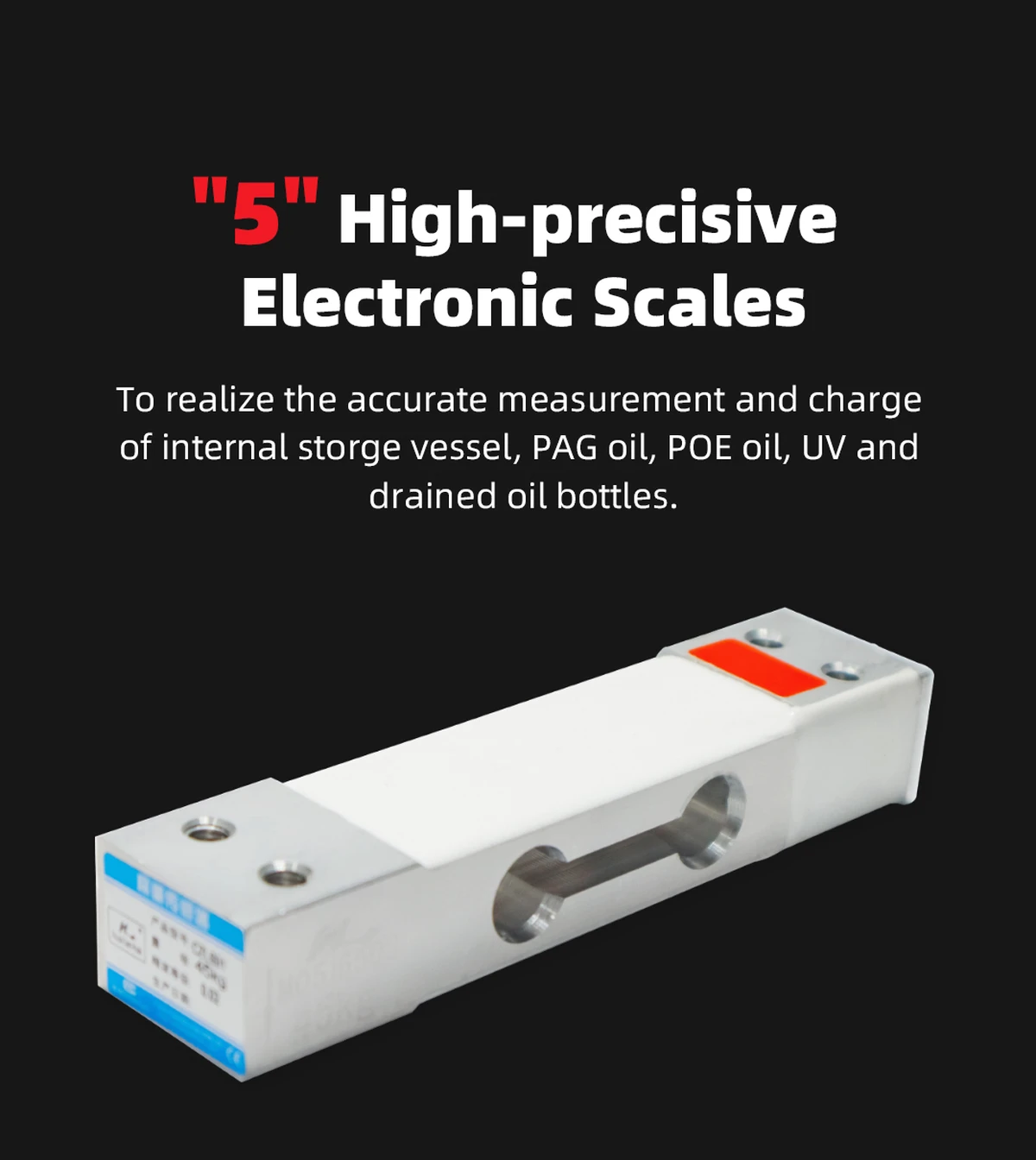

- 5 digital scales, respectively for PAG oil, POE oil, UV dye, drained oil and cylinder gas.

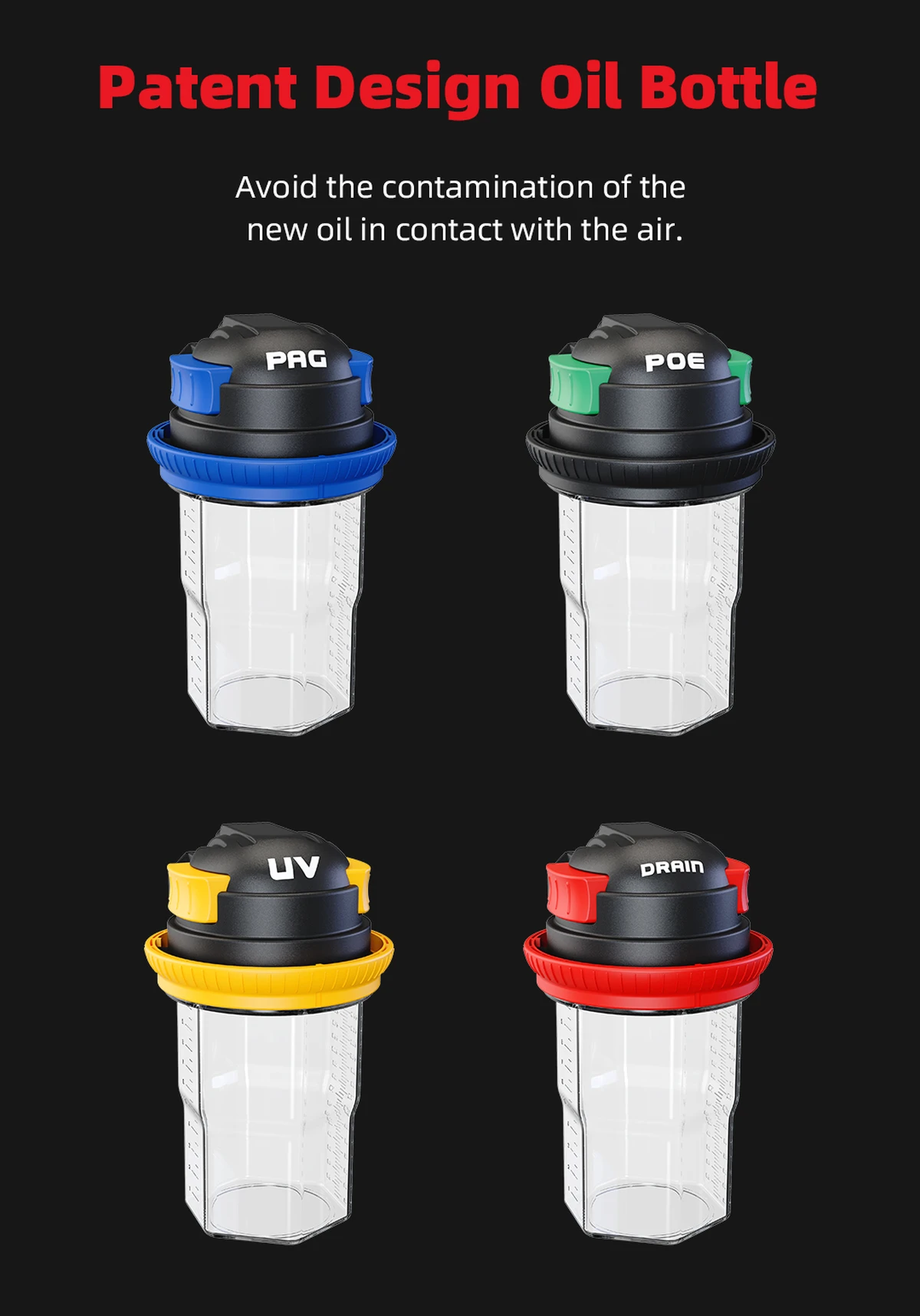

- 4 completely sealed oil bottles (1pc PAG, 1pc POE, 1pc UV dye, 1pc oil drain),no worry about contamination.

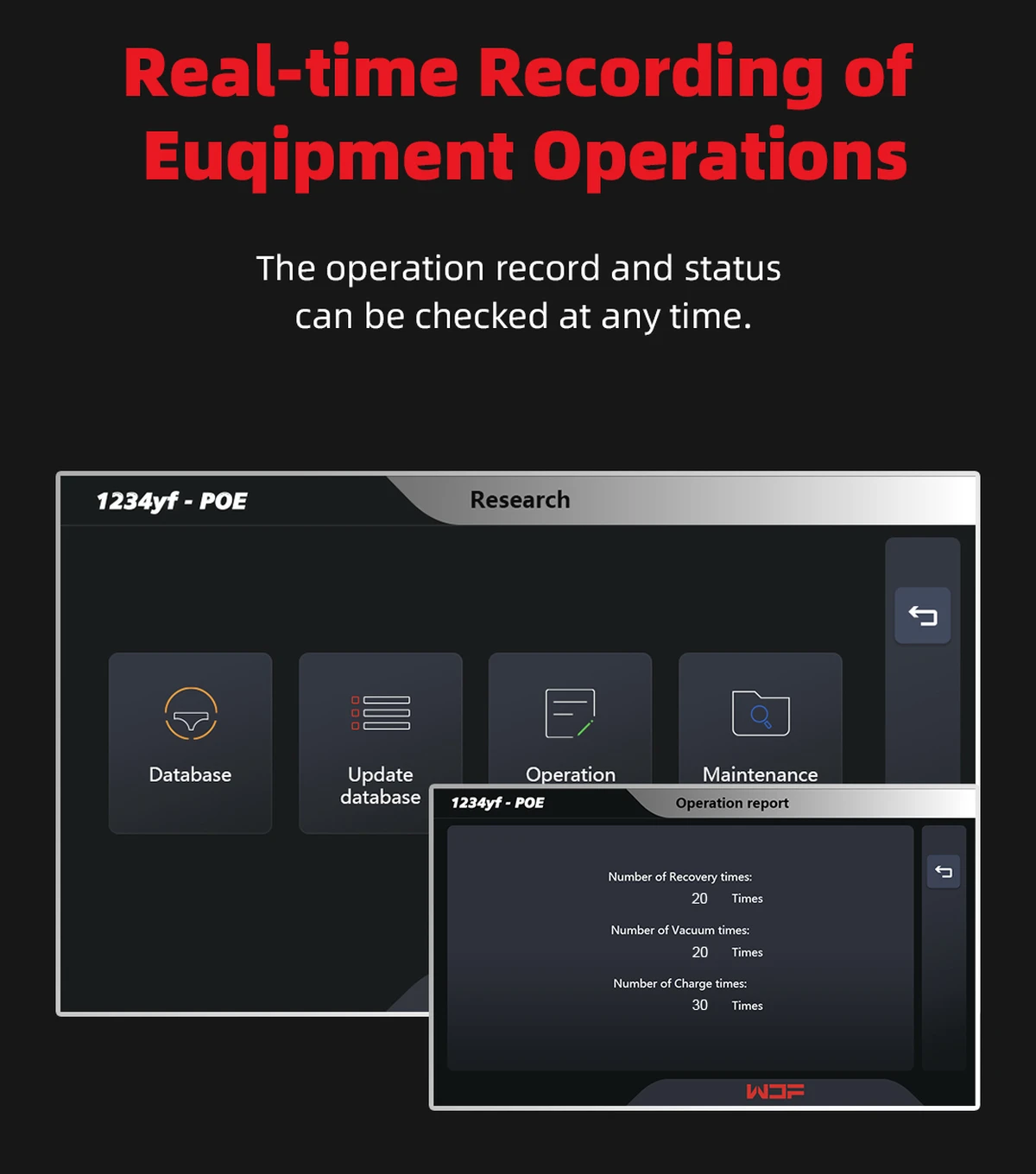

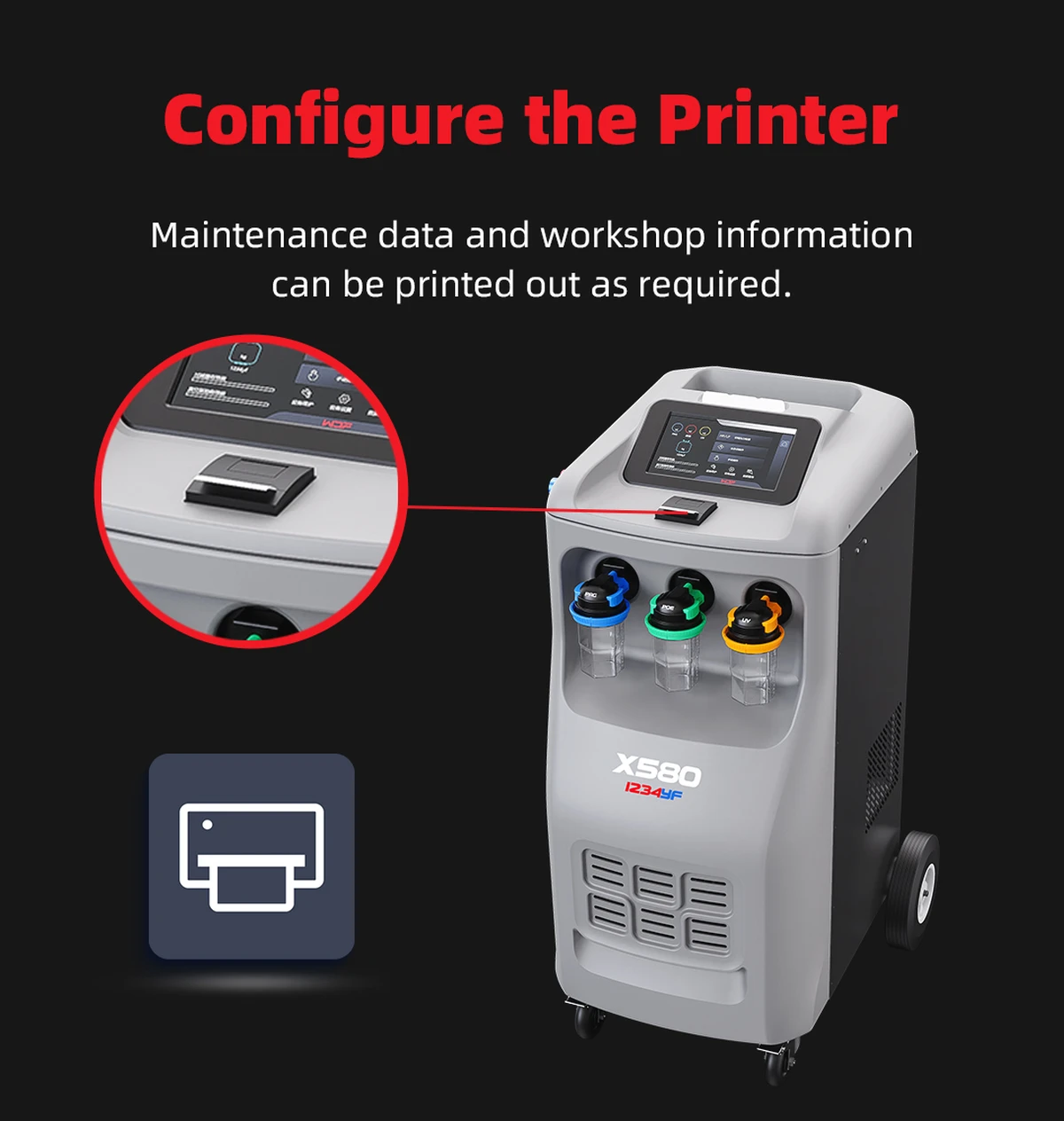

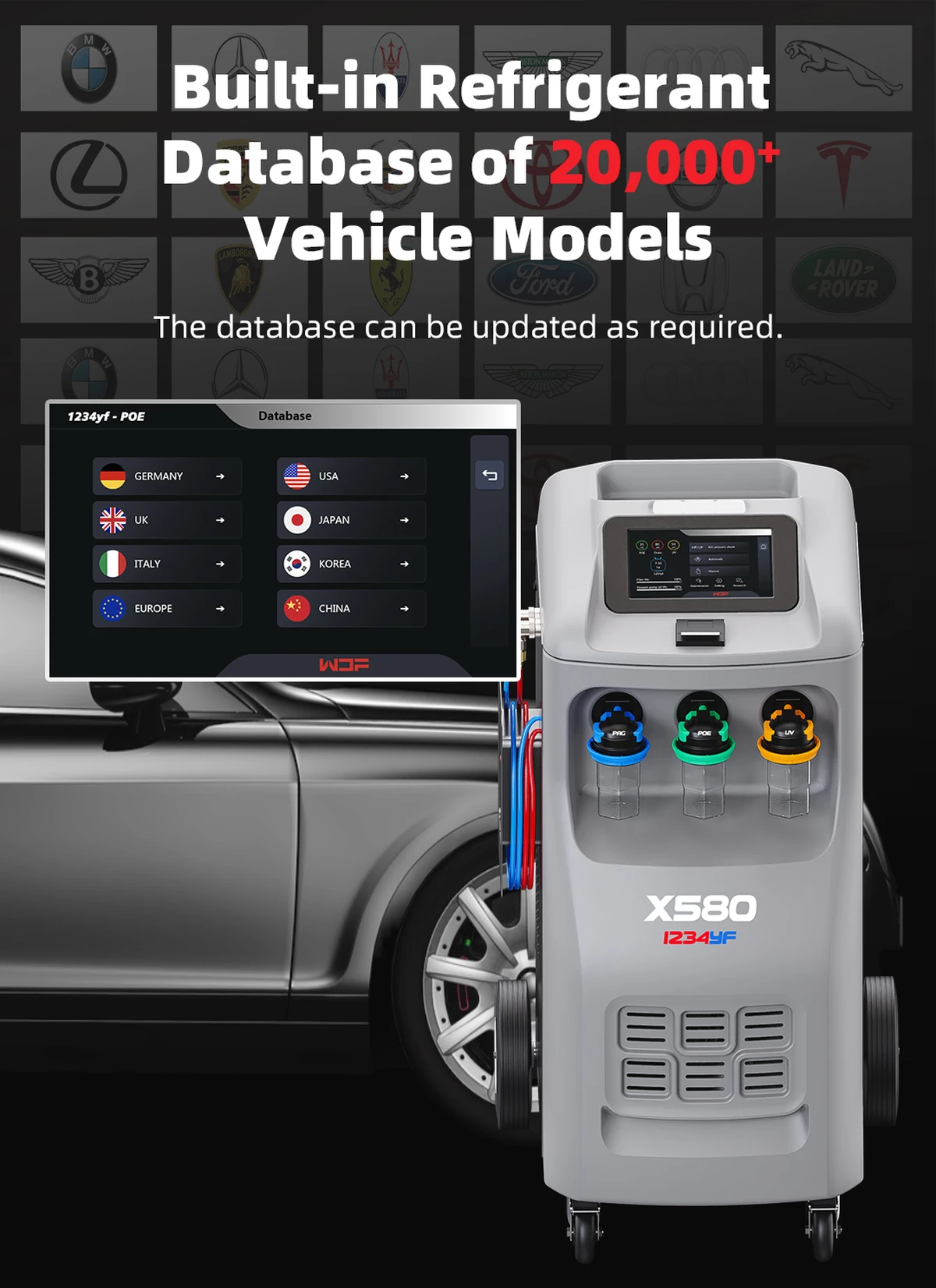

- Database and printer. The database can be updated using an SD card. The printer can print out a report with the car plate, workshop's name, and address.

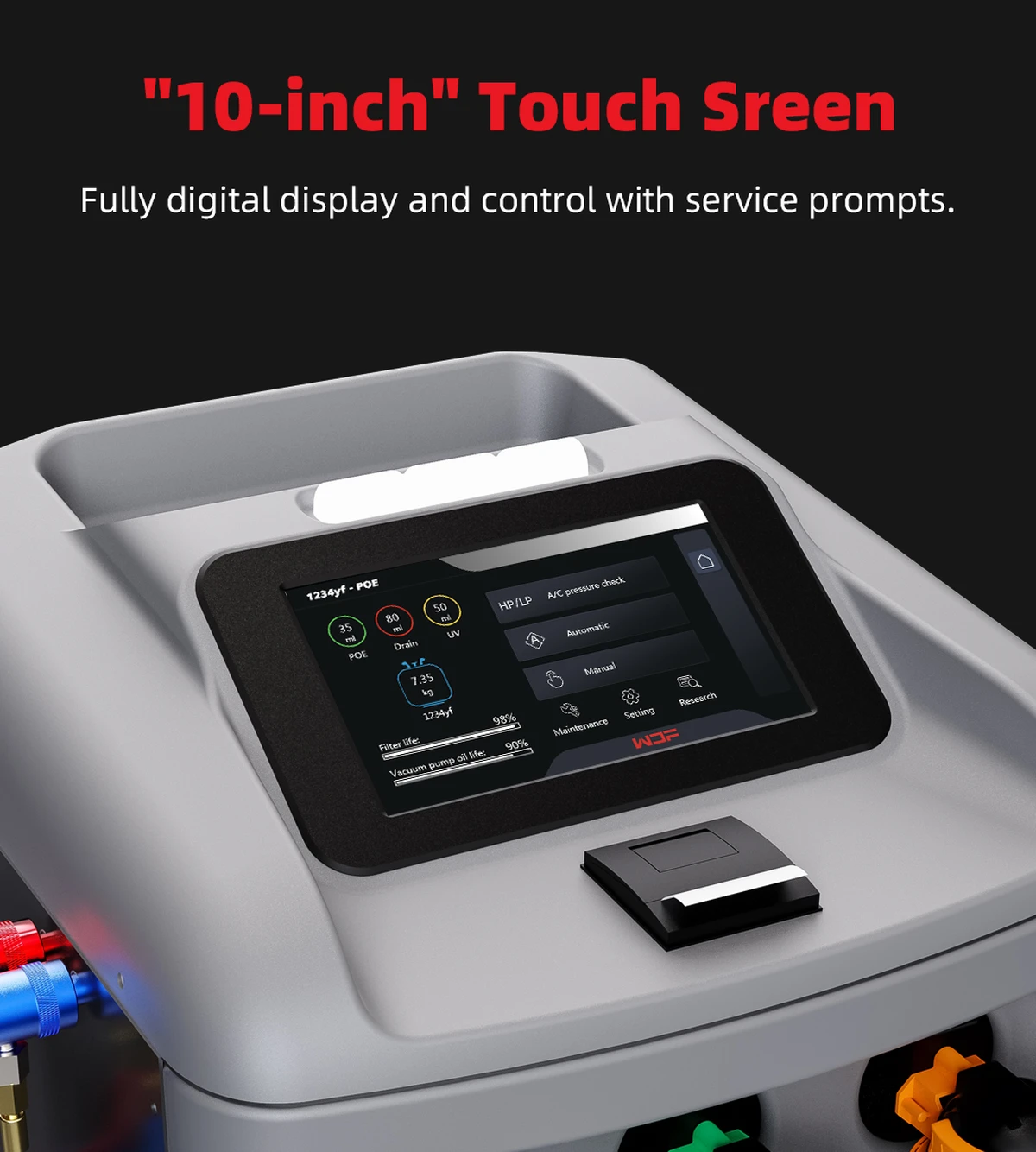

- 10-inch touch screen, clear and user-friendly.

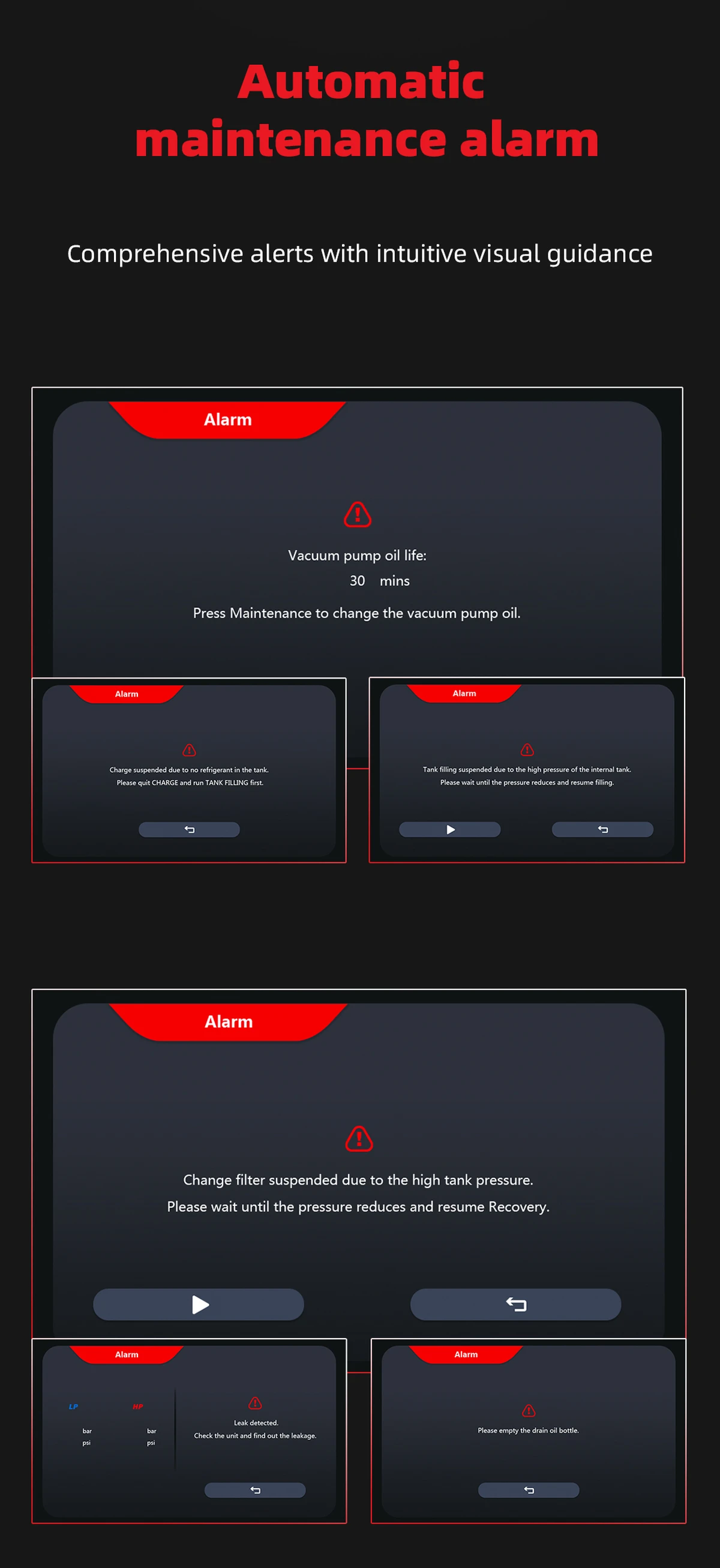

- Self-protection system: when the fan stops, the machine stops.
- Leaking hunting function
- Strong operation menu

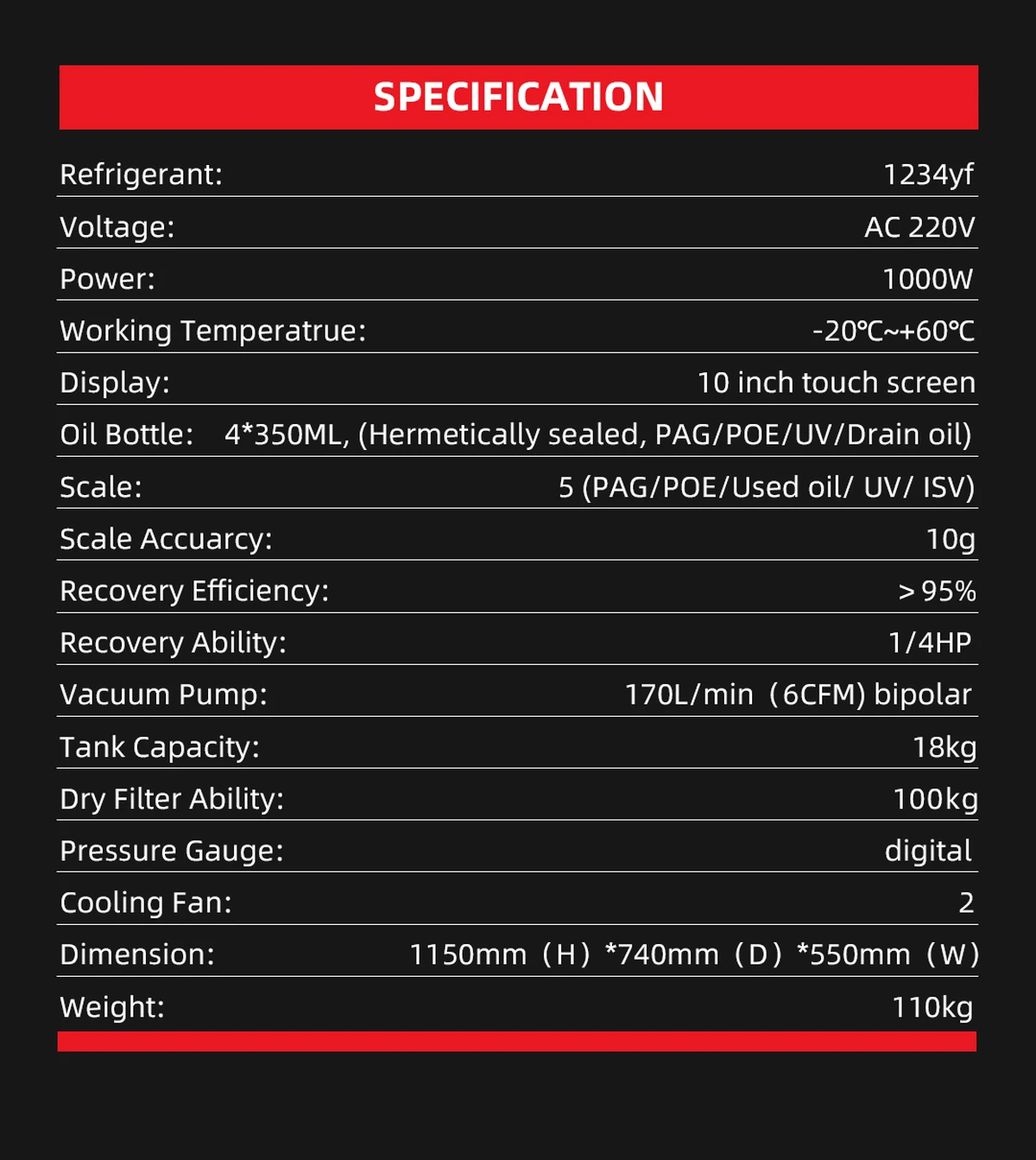

Technical Specifications
Refrigerant:R1234yf
Voltage:AC 220V
Power:1000W
Working Temperature:-20℃ to +60℃
Display:10-inch touch screen
Oil Bottles:4 × 350ML (Hermetically sealed for PAG / POE / UV / Drain oil)
Oil Types Supported:5 types (PAG / POE / Used Oil / UV / ISV)
Scale Accuracy:±10g

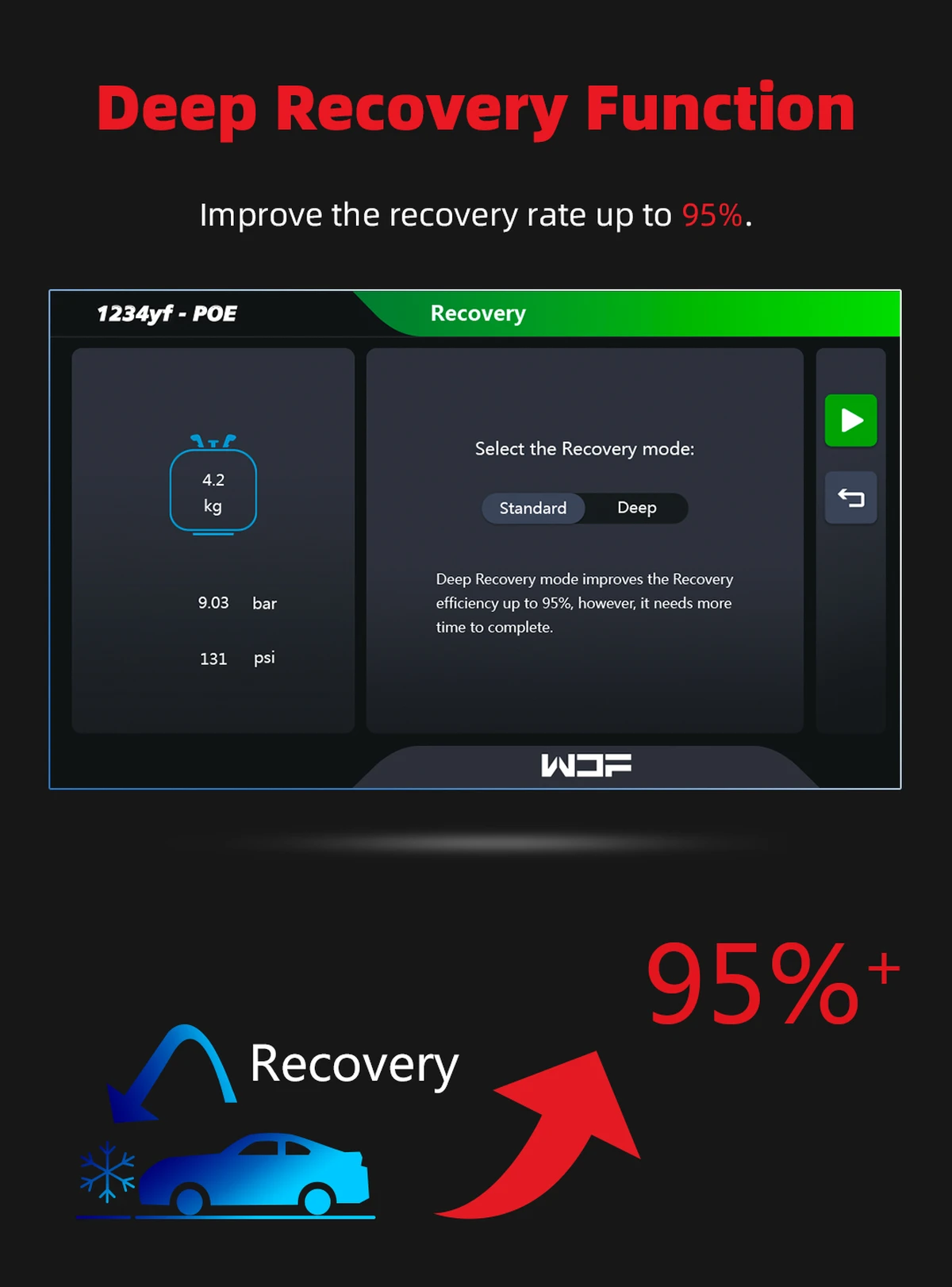

Recovery Efficiency:>95%
Recovery Ability:1/4 HP
Vacuum Pump:170 L/min (6 CFM), bipolar
Tank Capacity:18 kg
Dry Filter Capacity:100 kg
Pressure Gauge:Digital
Cooling Fan:2 units
Dimensions:1150 mm (H) × 740 mm (D) × 550 mm (W)
Weight:110 kg
