Description

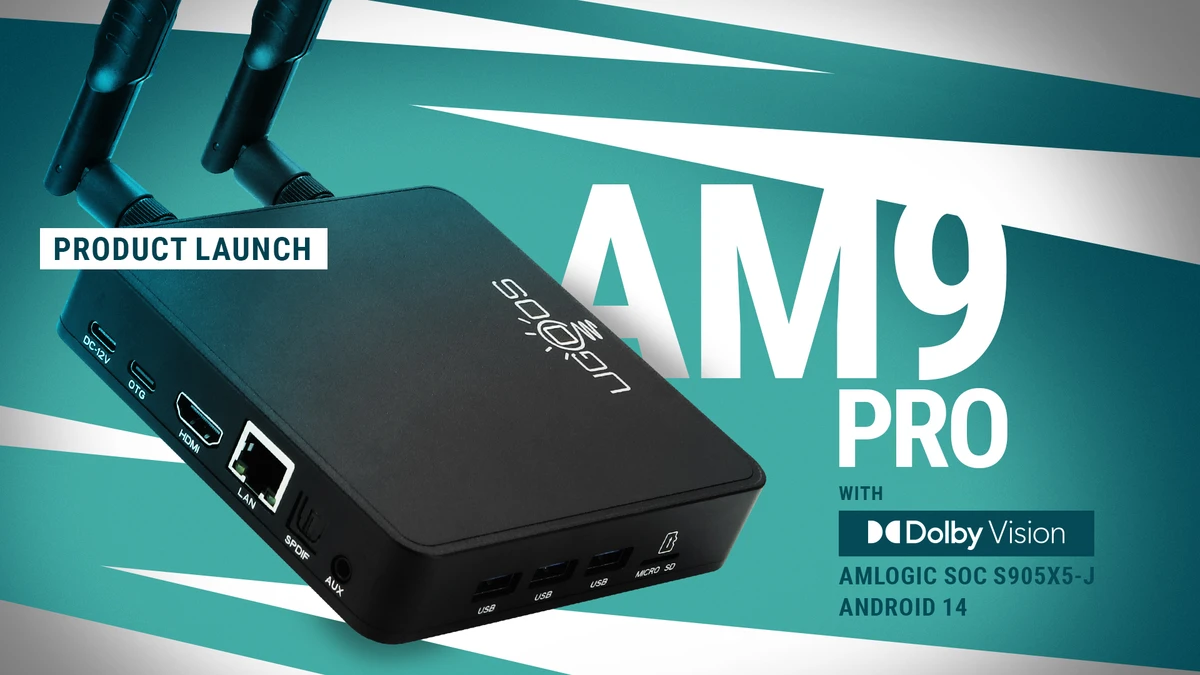

The AM9 Pro is a powerful, next-generation Android TV box designed for demanding multimedia and smart applications.
Equipped with the modern Amlogic S905X5-J processor built on a 6nm process, the device offers an excellent balance of high processing power and energy efficiency. Combined with the Mali-G310 GPU and an integrated AI acceleration unit (NPU), the AM9 Pro ensures smooth 4K playback, fast app launches, and intelligent content upscaling.
Thanks to support for the latest video codecs such as AV1 and H.266, the AM9 Pro delivers crisp images at lower data rates. HDR10+ significantly improves contrast and color depth for an immersive viewing experience. With Wi-Fi 6, Gigabit LAN, and Bluetooth 5.3, a stable, fast, and reliable connection is guaranteed at all times.

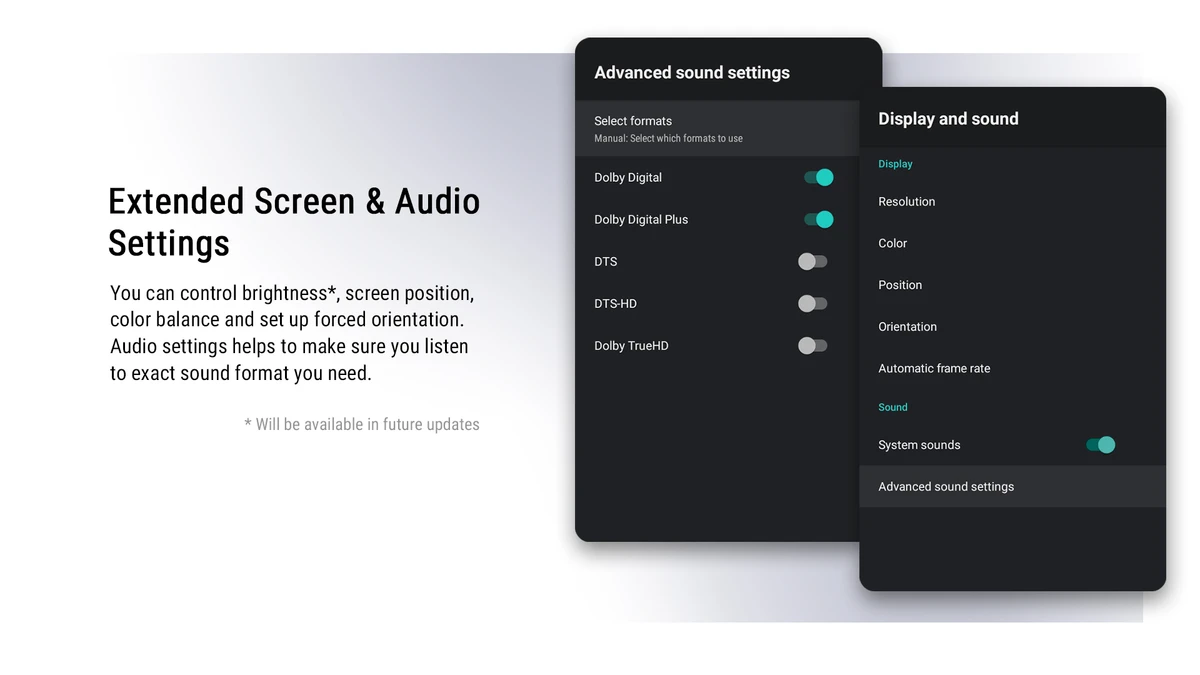

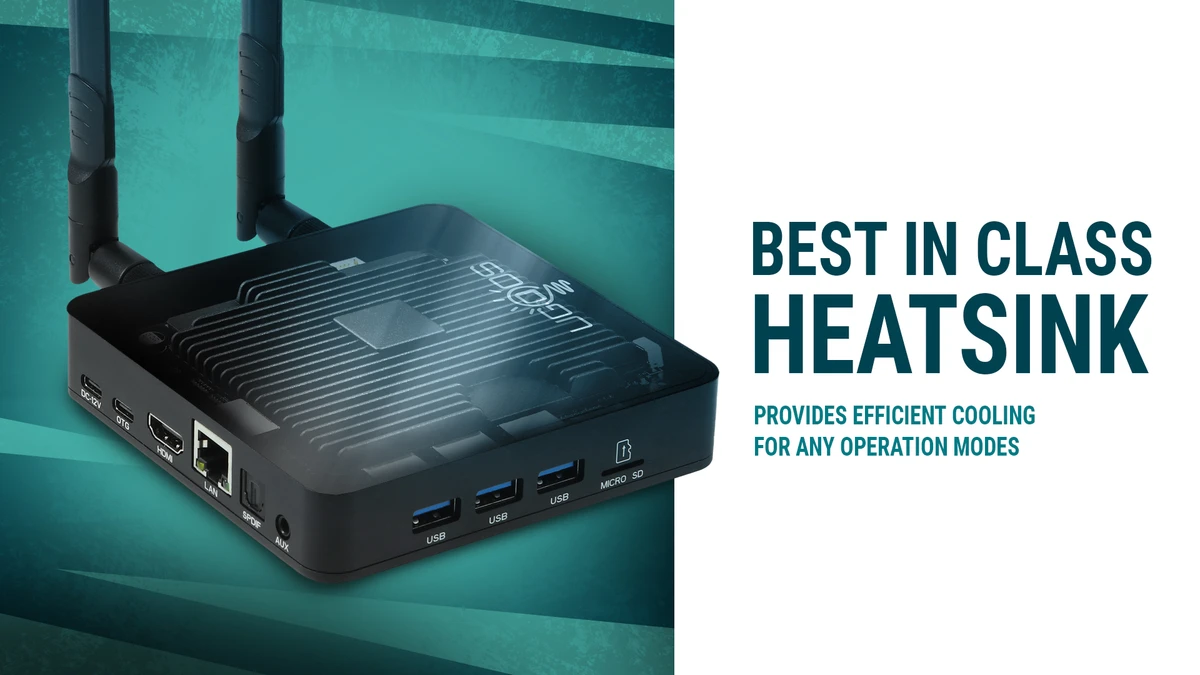

The device also impresses in terms of flexibility: multiple USB 3.0 ports, an optical SPDIF audio output, and a TF card slot allow for versatile expansion. Regular OTA updates keep the system up to date, while advanced system settings and optional root functionality offer experienced users additional control. The robust metal casing also supports efficient heat dissipation and underscores the premium quality of the AM9 Pro.
Specifications
Operating System: Android 14.0
Language: Multilingual support
CPU: Amlogic S905X5-J Quad-Core ARMv9 Cortex-A510
GPU: Mali-G310 V5
NPU: Neural Network Accelerator (NNA) with TPU architecture; 512 KB internal RAM; SMMU address remapper; support for TensorFlow, TensorFlow Lite, ONNX, PyTorch, Darknet, MXNet, and Caffe; AI Performance 4–4.3 TOPS
RAM: 4 GB LPDDR5
Storage: 64 GB eMMC
Wi-Fi: 802.11 a/b/g/n/ac/ax, 2T2R, max. 1201 Mbps

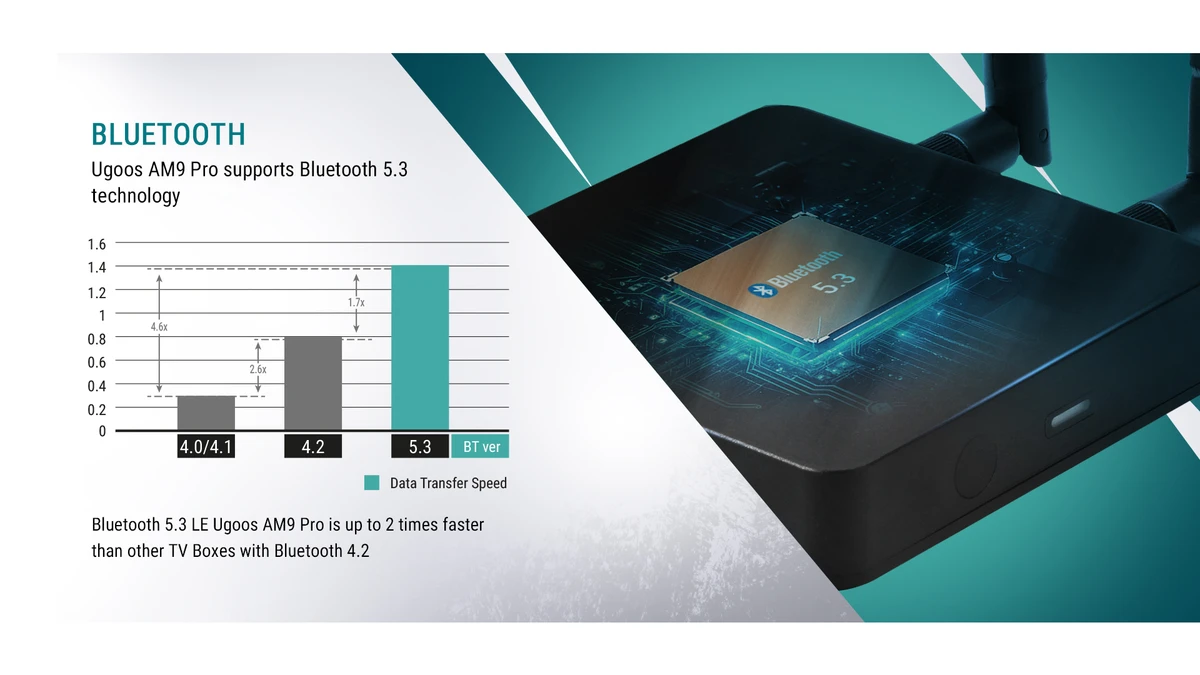

Bluetooth: Bluetooth 5.3
Expandable Storage: TF card (SD2.x / SD3.x / SD4.x), eMMC v5.0
Power Supply: USB-C, 12 V / 1.67 A
HDR: Supported

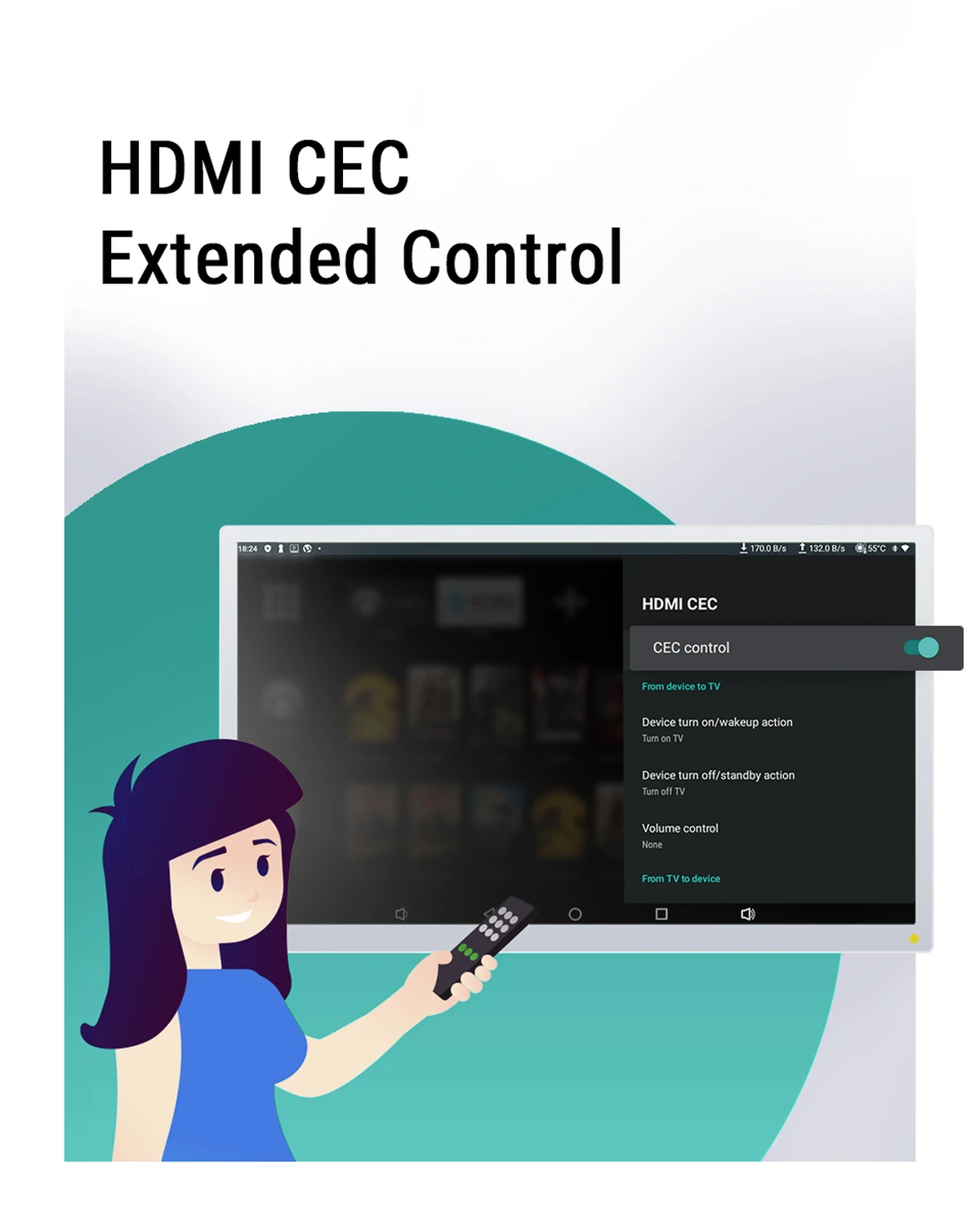

CEC: Supported
Interfaces:
HDMI Output: HDMI 2.1b with eARC, CEC, ALLM, VRR, QMS, Dynamic HDR, HDCP 2.2/2.3; up to 4K×2K@60 fps

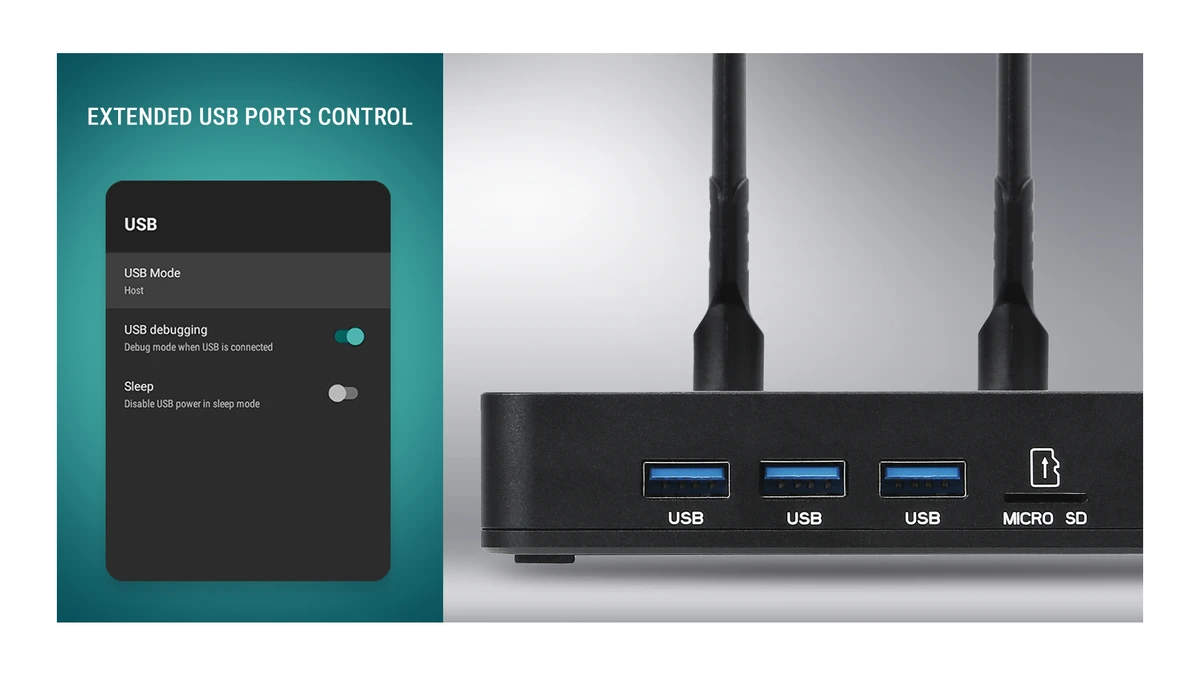

USB Ports: 3× USB-A 3.0 1× USB-C OTG 2.0
Optical Output: 1× SPDIF
LED Work Light: Supported

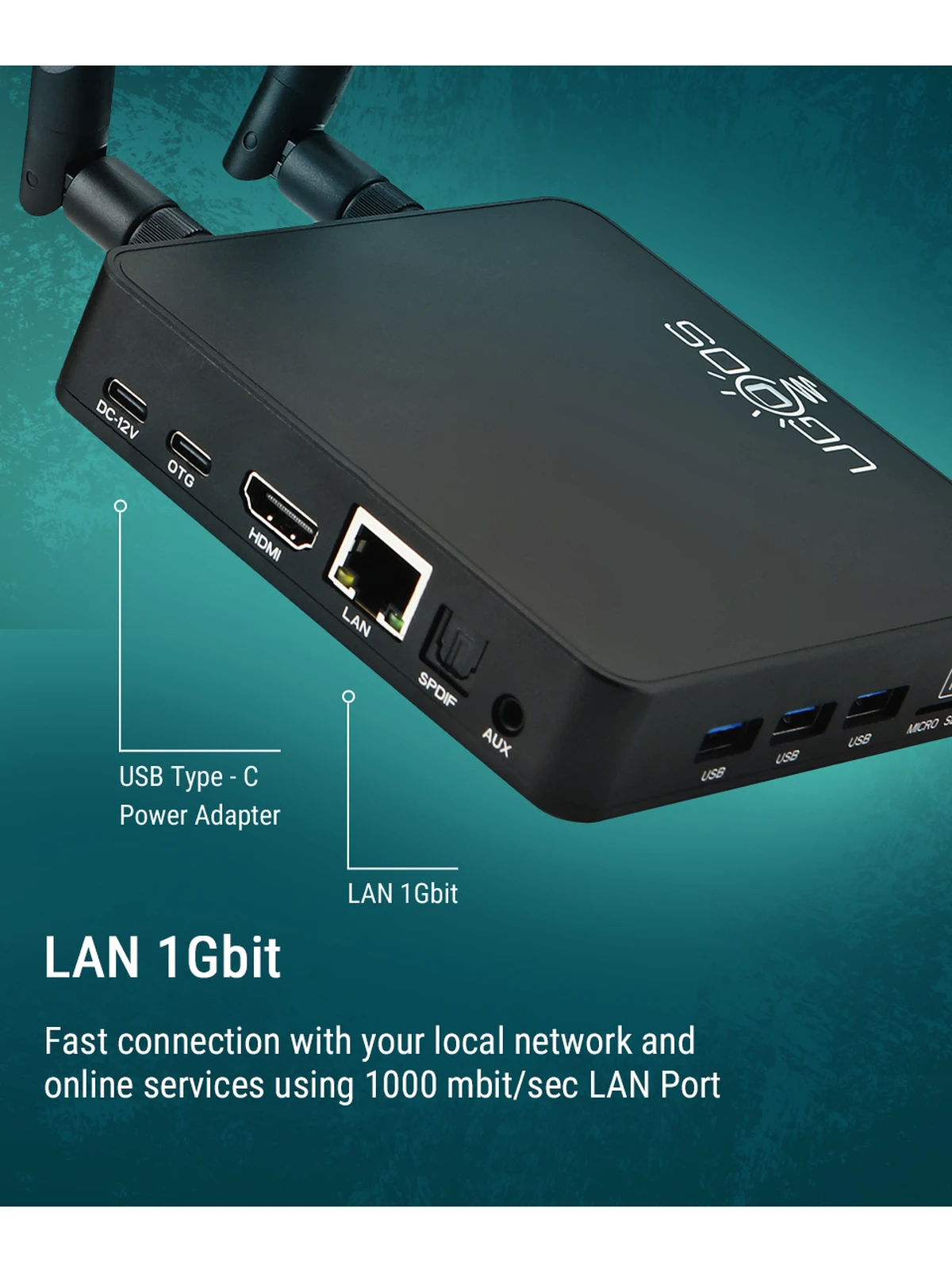

Network: 1× RJ45 Gigabit Ethernet (10/100/1000 Mbps)
Media Parameters:
Audio Formats: MP3, AAC, WMA, RM, FLAC, Ogg Vorbis, Opus, Dolby Audio (optional), DTS (optional), 7.1/5.1 Downmix
Video Output: 480i/p, 576i/p, 720p, 1080i/p, 4K×2K
Video Codecs: H.266, AV1, VP9, H.265, AVS3, H.264, MPEG-4, WMV/VC-1, AVS+, MPEG-2, MPEG-1, MJPEG, JPEG Multilingual subtitles
Widevine: L3
Software extensions: Google Play, APK installation
Other parameters:

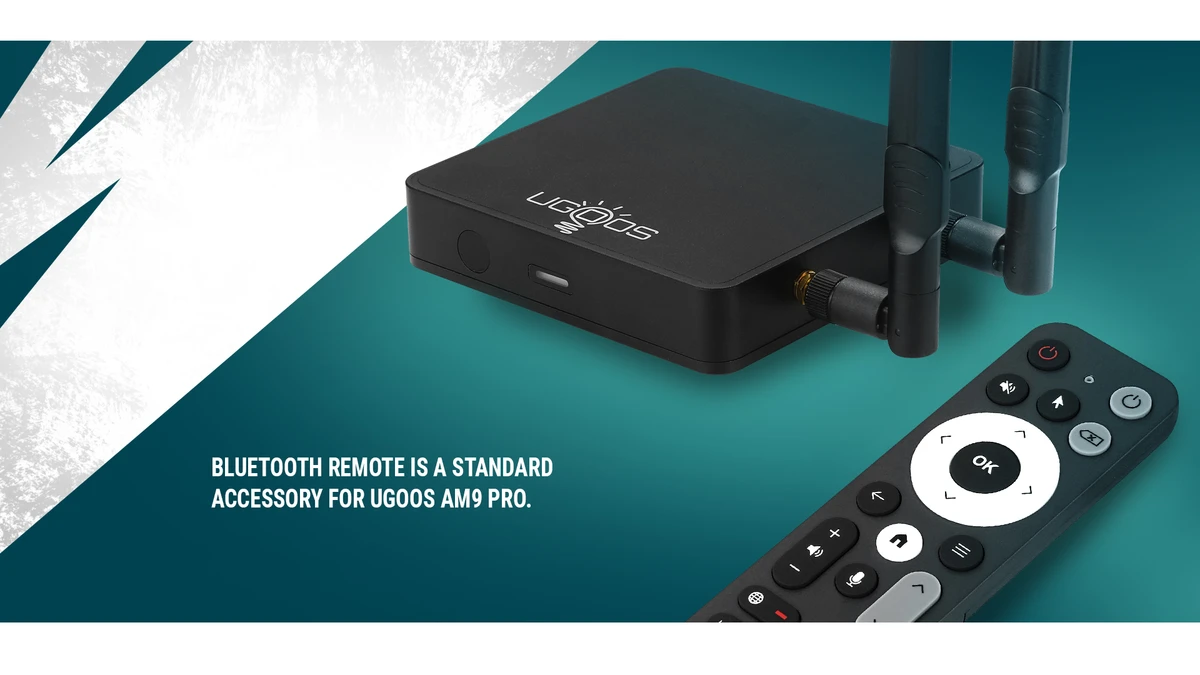

Remote control: Bluetooth remote control with voice control and gyroscope
Humidity: 5%–90% (non-condensing)
Certifications: CE, FCC
OEM options: Optional 4G LTE module and SSD port
Packaging:
Device dimensions: 11.6 × 11.6 × 2.8 cm
Gift box dimensions: 15 × 16 × 9 cm
