SCULPFUN SF-A9 40w/20w Laser Cutting and Engraving Machine with Smart Air Assist, 36000mm/min Laser Engraver
Characteristics:
-40w powerful laser: SF-A9 adopts the 40w laser head with a strong cutting ability, supporting 40w/20w laser power switching, which can cut 20mm plywood and 6mm dark acrylic in one pass. It uses the warmer ear radiator to provide faster and more balanced heat dissipation performance.
-Safety protection design: Built with a tilt sensor, it will trigger an alarm and stop emitting the laser light while the machine body becomes unbalanced and tilts over 15°. It is also equipped with the functions of emergency stop and child safety switches, flame and temperature sensors. If it detects the flames during the working process, the flame and temperature sensors will be triggered and the machine will stop working with an alarm while automatically moving to the safest place.

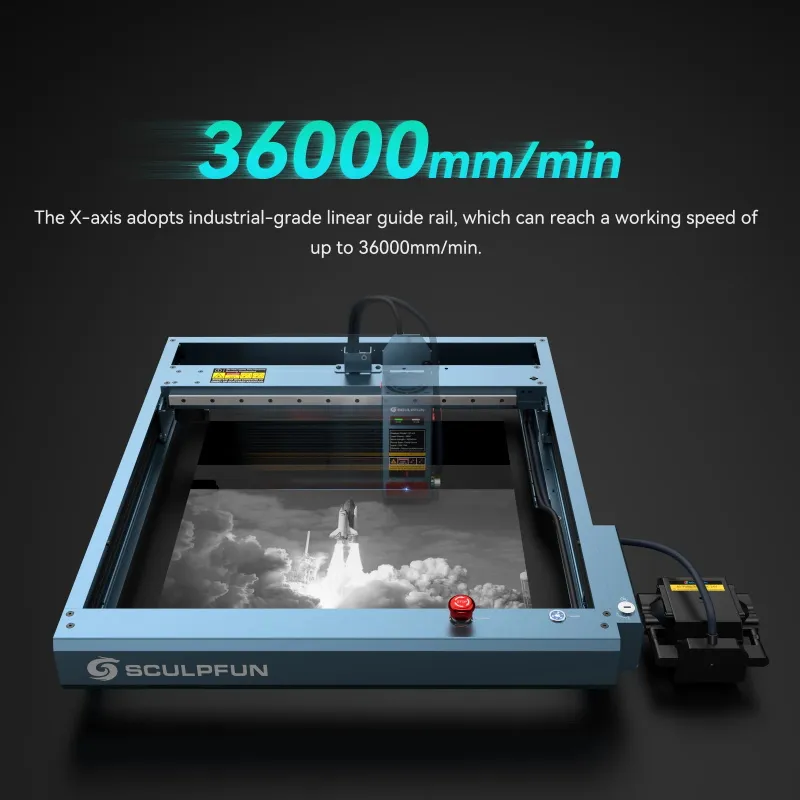

-36000mm/min high speed: The SF-A9 laser engraving machine supports high-speed engraving mode with a faster working speed of up to 36000mm/min as well as a stable machine body to achieve a perfect engraving effect. And it supports precision mode to cut more accurately for better assembly of components.

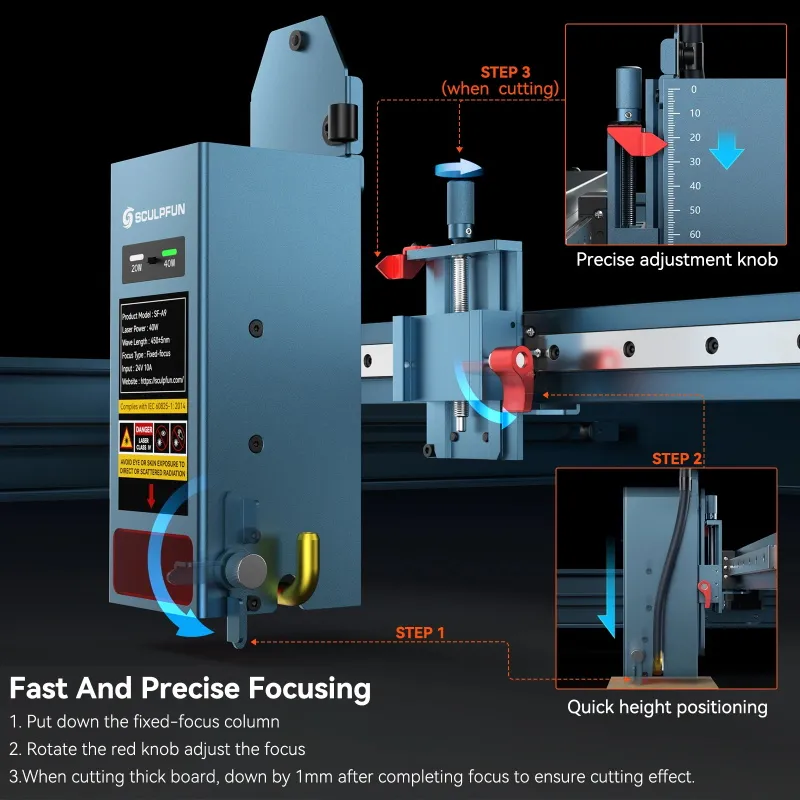

-Precise focusing design: With precise focusing, the focus lever on the laser head is stable, which enables the focusing position to be more accurate. The red button on the right side of the laser is intended to raise or lower the laser module for quick height positioning according to the material thickness. and the button on the top of the laser is for precise adjustment.

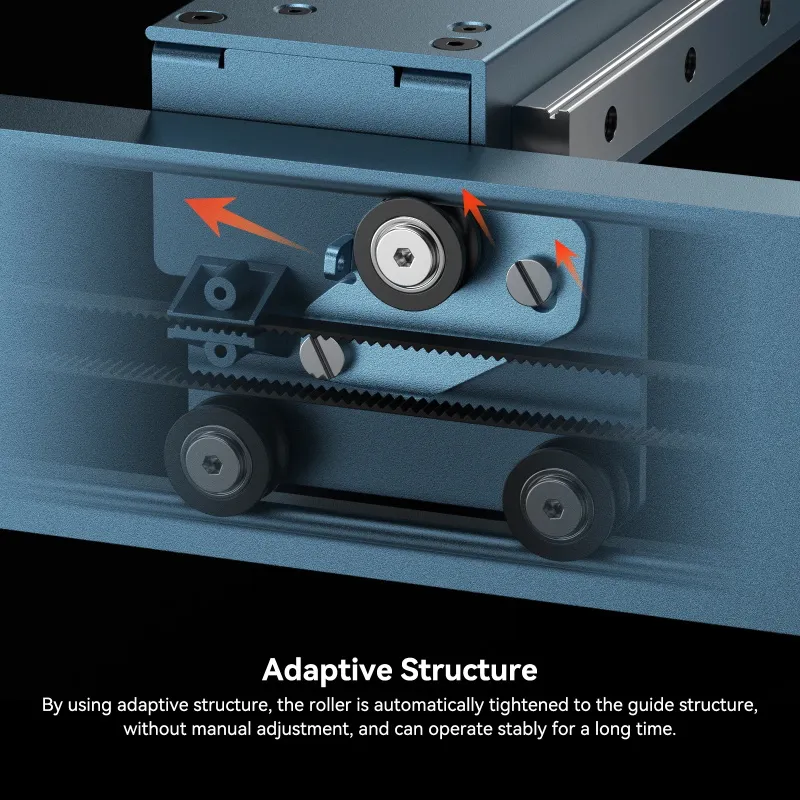

-Robust and easy installation: Full metal structure design makes the machine sturdy. The leveling structure of the metal support and the linear guide rail of the x-axis in industrial quality provide more stability for the machine, which increases the engraving movement accuracy to 0.01mm. Y-axis uses adaptive wheels to provide smoother movement. Easy one-step installation to complete the entire assembly.

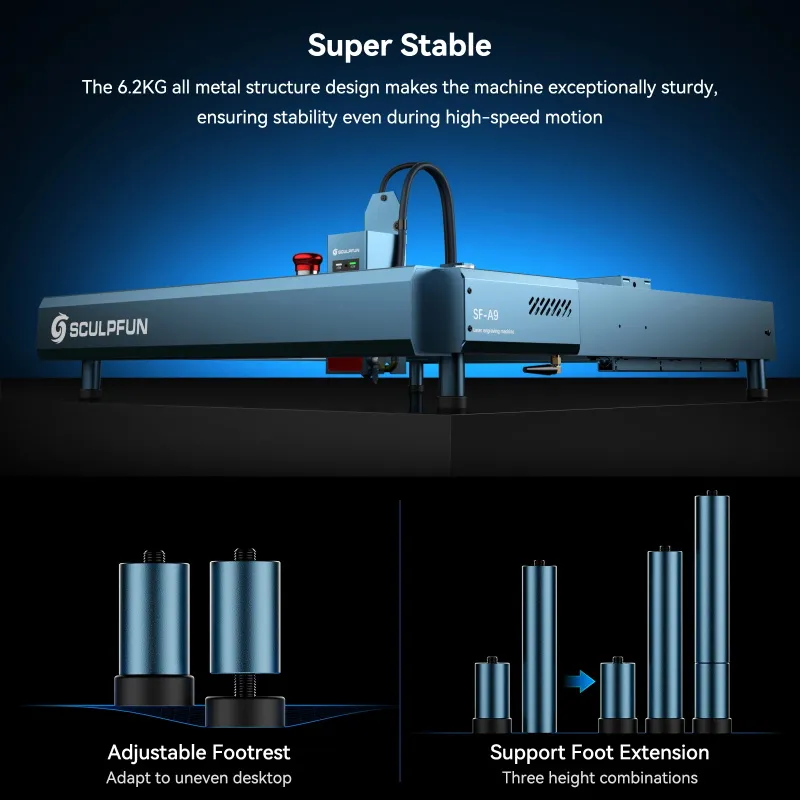

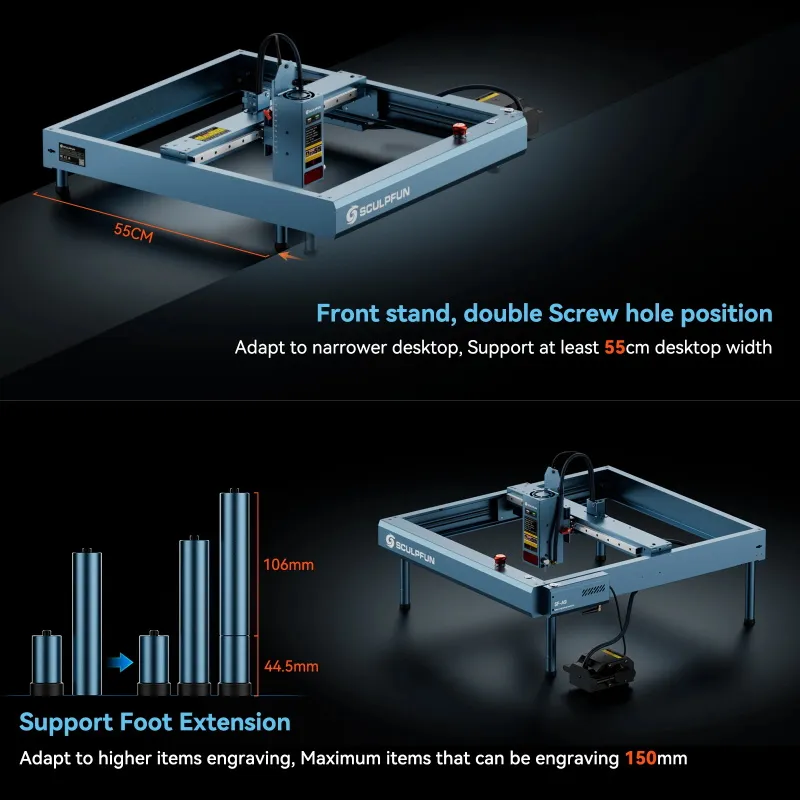

-Adjustable machine height: The Sculpfun-SF-A9 comes with the additional metal support columns, which can adjust the height of the machine to facilitate engraving higher objects and meet a variety of work needs.

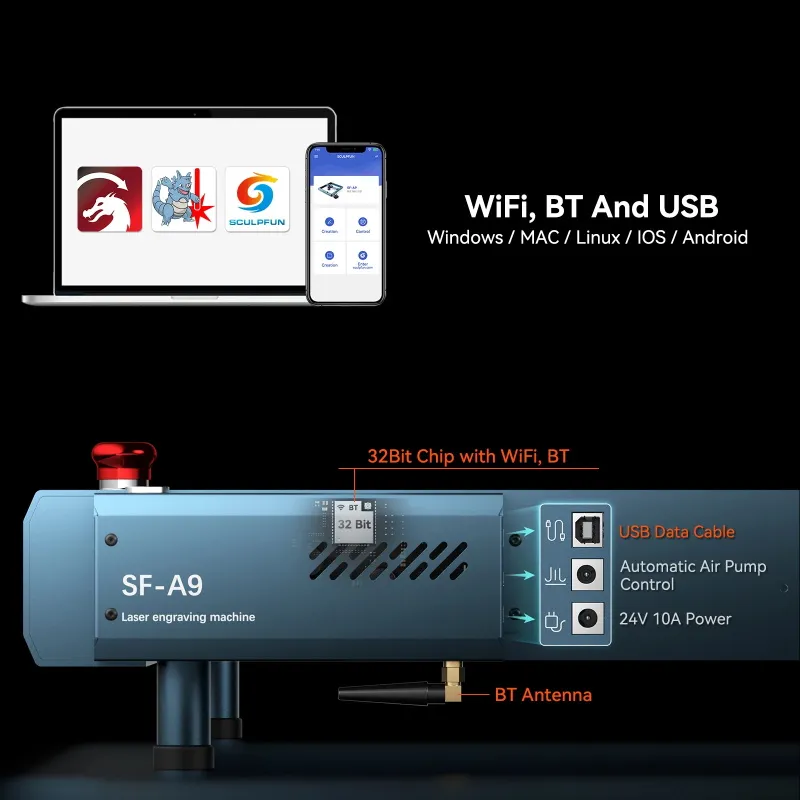

-Multiple connection methods: support wifi, usb and bt function. It can be compatible with Sculpfun mobile phone app or computer software such as light burn and laser grbl.
-Automatic air support: improved large inner diameter air duct with a better air duct design, which can present a cleaner cutting effect and improve the service life of the laser lens.
Specification:
Product model: sculpfun SF-A9
Flame alarm: 60℃ trigger
Tilt sensor: 15° trigger
Bt: 4.2
Wi-Fi: 2.4GHz
Wavelength: 450nm ± 5nm
Working area: 400*400mm
Laser module power: 40w
Laser spot: adjustable: 0.1mm/0.15mm
Working speed: max.36000mm/min
Working voltage: dc24v
Working current: 10a
Input power: 240w
Support system: win7/win8/win10/win11/mac/ios/android/linux
Material for engraving: cardboard, MDF, felt, cardboard, wood, bamboo, leather, fabric, dark acrylic, brushed stainless steel, dark anodized aluminum, painted metal, etc
Material for cutting: cardboard, MDF, felt, cardboard, wood, bamboo, leather, fabric, dark acrylic, etc.
Operating application software:
Computer: light burn/laser grbl
Mobile: sculpfun app
Package weight: 11.2kg
Package size: 28.1x26.1x5.9mm
Packing list:
1 x Laser machine
1 x Laser head
1 x Adapter
1 x Power Cable
4 x metal supports
4 x replacement metal support column
1 x Type-C Data Cable
1 x Air Pump
1 x Safety Glasses
1 x Lens repair kit
1 x tool set
1 x cable tie pack
1 x antenna package
1 x screw set
1 x Aluminum plate
2 x linden board
2 x Keys
