OBDSTAR ISCAN PRO MERCRUISER, MERCURY (MARINE) Advanced Diagnostic Scanners

OBDSTAR ISCAN PRO MERCRUISER, MERCURY (MARINE) Advanced Diagnostic Scanners

Functions
1. Android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.

Advanced Function

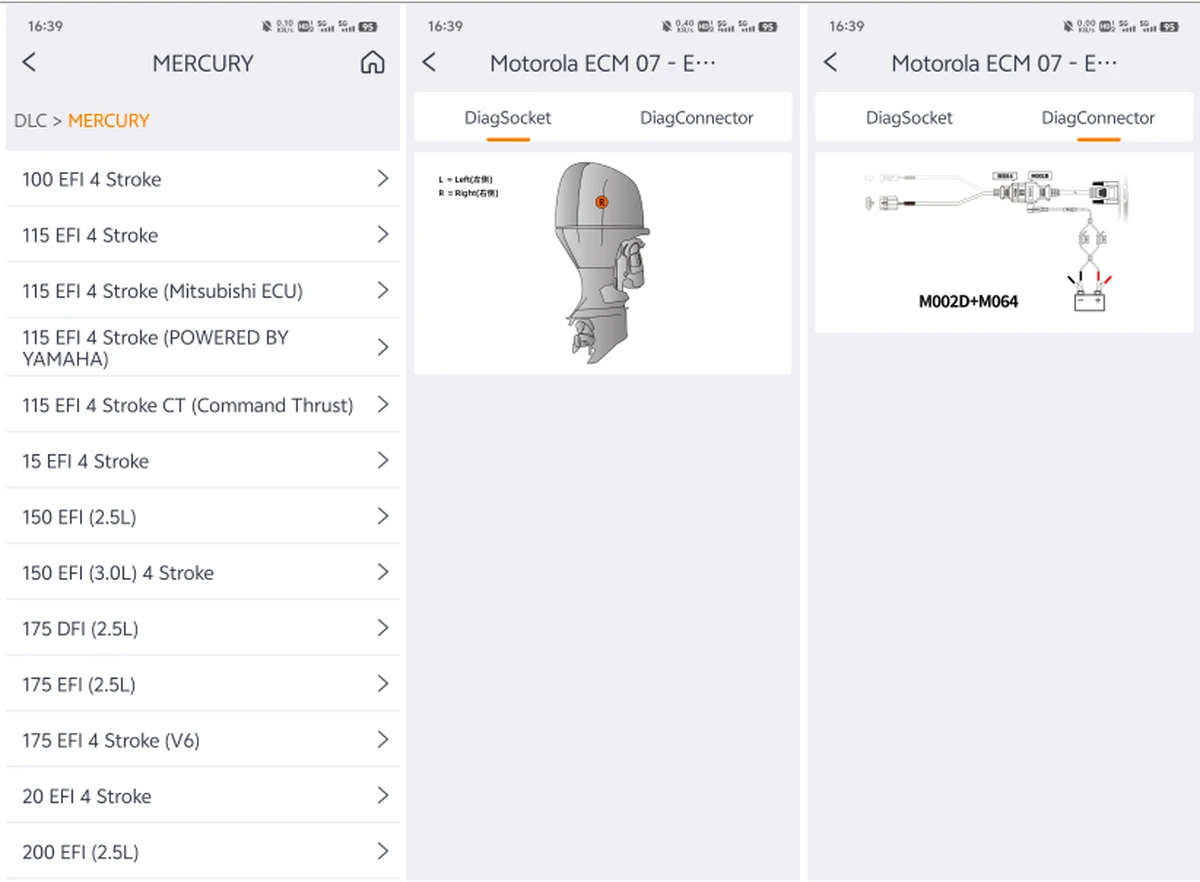

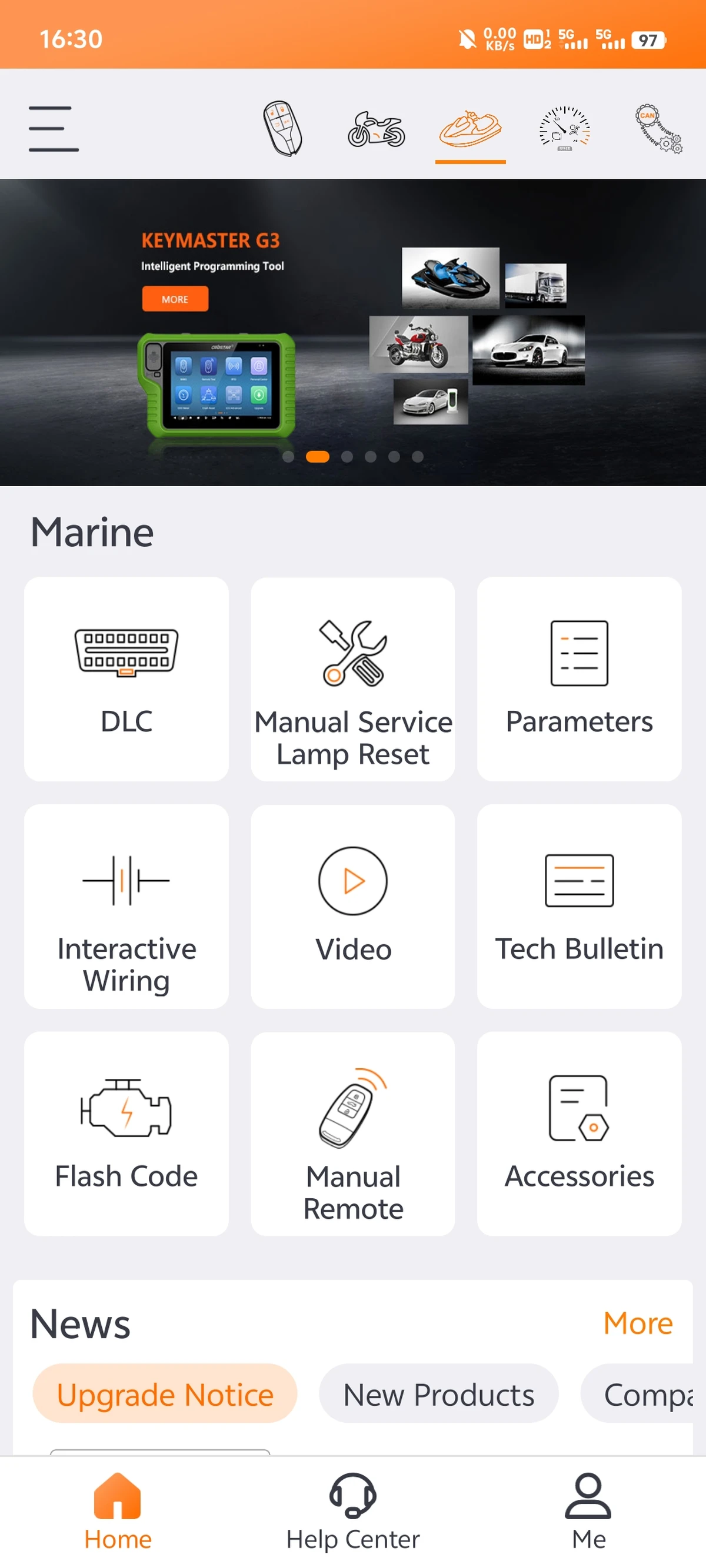

1. The OBDSTAR mobile APP integrates functions such as diag socket location, technical bulletin etc., working with ISCAN PRO to make marine diagnosis more accurately and efficiently;

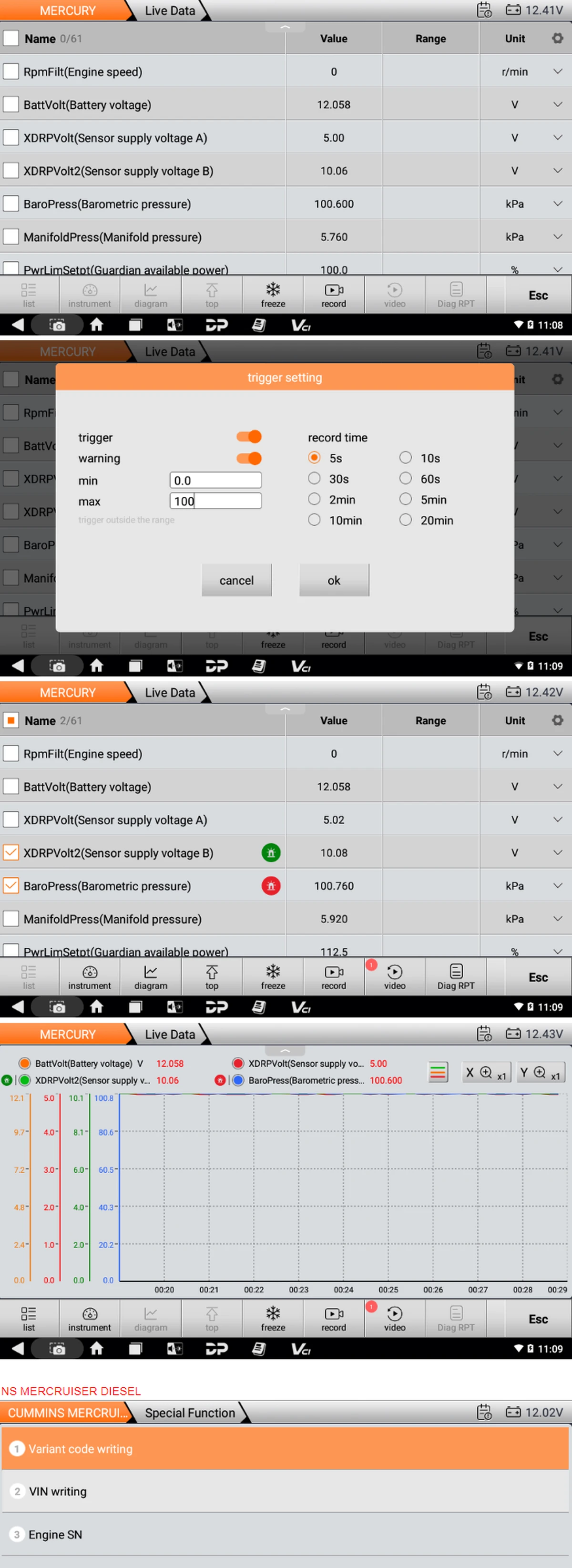

2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;

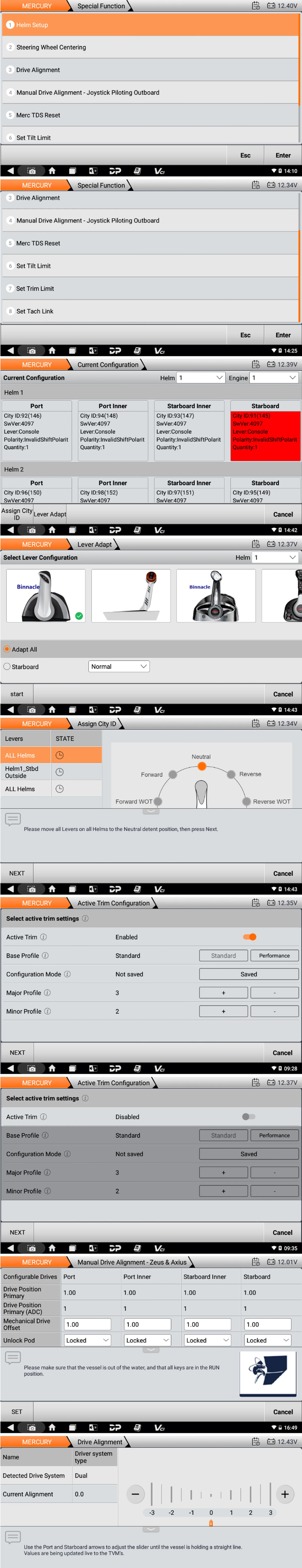

3. Support Helm Setup, Compass Configuration, Steering Wheel Centering, Auxiliary Joystick Configuration, Wheel Setup, Joystick Setup, Trackpad Configuration, Active Trim GPS Configuration, Drive Initialization, Drive Alignment, Manual Drive Alignment, Zeus_And_Axius, Joystick_Piloting_Outboard, Merc_Tds_Reset, Set Tilt Limit, Set Trim Limit, Set_Engine_Location, Set_Tach_Link, Active_Trim_Configuration, Maintenance, SMUX Configuration, Autopilot Configuration, Trackpad Configuration, Transmission Characteristics, Confirm Vessel Harnessing, Fathom II Enable, Tiller Adapt, Steering System to DTS and other special functions.
4. Support DC24V input.

Specification

Diagnostic support series
1. Support all models in G3, CUMMINS MERCRUISER DIESEL, MERCRUISER and MERCURY DIESEL, including DFI 2, Optimax, Seapro, Verado, 40HP-300HP, 100 VAZER - 4 IN LINE, 2.8L D-TRONIC, 3.0 MPI ECT, 350 MAG MPI, 350 MAG MPI DTS MCM, 350 MAG MPI DTS MIE, 350 MAG MPI MCM, 350 MAG MPI MIE, 350 MAG TBI, 377 MAG MPI, 4.2L D-TRONIC, 4.3L MPI MCM, 4.3L TBI, 4.5L, 4.5L MPI MCM, 454 MAG MPI MCM, 454 MAG MPI MIE, 454 TBI, 496 MAG, 496 MAG DTS, 496 MAG HO, 496 MAG HO DTS, 5.0L MPI, 5.0L MPI DTS MCM, 5.0L MPI DTS MIE, 5.0L MPI MCM, 5.0L TBI, 5.7L MPI, 5.7L MPI Horizon, 5.7L MPI Tow Sport, 5.7L TBI MCM, 5.7L TBI MIE, 5.7L TBI REPOWER PLUS, 502 MAG MPI, 6.2L, 6.2L MPI, 6.2L MPI DTS MCM, 6.2L MPI DTS MIE, 6.2L MPI Horizon, 6.2L MPI MCM, 6.2L MPI MIE, 7.4L, 7.4L MPI, 7.4L TBI, 8.1L, 8.1L DTS, 8.1L HO, 8.1L HO DTS, 8.2L HO MPI, 8.2L MAG HO MPI, 8.2L MAG MPI, 8.2L MPI Horizon, 8.2L MPI MIE, BLACK SCORPION (5.7L), BLACK SCORPION (6.2L), Scorpion 350, Scorpion 377, 3.0L V6 (POWERED BY FPT), V10, V12, 6.7 L (POWERED BY FPT), MD 2.0-115, MD 2.0-130, MD 2.0-150, MD 2.0-170, MD 2.8-220, MD 4.2-270, MD 4.2-320, MD 4.2-350, QSD 2.0-115, QSD 2.0-130, QSD 2.0-150, QSD 2.0-170, QSD 2.8-220, QSD 4.2-270, QSD 4.2-320, QSD 4.2-350, TDI 3.0-230 (POWERED BY VW), TDI 3.0-260 (POWERED BY VW), TDI 4.2-335 (POWERED BY VW), TDI 4.2-370 (POWERED BY VW), QSD 2.0-115, QSD 2.0-130, QSD 2.0-150, QSD 2.0-170, QSD 2.8-220, QSD 4.2-270, QSD 4.2-320, QSD 4.2-350 Engines and other models;

2. The support modules include but no limited to Engines (DIESEL and Gasoline), Joystick, Lever and Helm Control Module, Lever Configuration, Service System, Thrust Vector Control Module, Injection system integration module and other modules
Additional Satellite Receiver

Audio Satellite Receiver

Autopilot

Bow Thruster

Connected Vessel Device

Diagnostic Tool

Electronic Compass

GPS Receiver

Generator

Helm Autopilot Trackpad

Helm Device  Display Gauge

Helm Mercury NMEA Gateway

Helm PORT Command Control Module

Helm PORT Inner Command Control Module

Helm PORT Inner Legacy System Monitor

Helm PORT Inner System Monitor

Helm PORT Inner System Tachometer

Helm PORT Legacy System Monitor

Helm PORT System Monitor

Helm PORT System Tachometer

Helm STBD Command Control Module

Helm STBD Inner Command Control Module

Helm STBD Inner Legacy System Monitor

Helm STBD Inner System Monitor

Helm STBD Inner System Tachometer

Helm STBD Legacy System Monitor

Helm STBD System Monitor

Helm STBD System Tachometer

Helm Smart Multiplexer

Helm Steering Wheel

Helm System Speedometer

Helm Autopilot Trackpad

Helm Device 1 Display Gauge

Helm Device Display Gauge

Helm Mercury NMEA Gateway

Joystick Module

NAVMAN Gateway

PORT Engine

PORT Inner Engine

PORT Inner Thrust Vectoring Module

PORT Inner Transmission Control Module

PORT Thrust Vectoring Module

PORT Transmission Control Module

Remote Joystick Module

Replicator

STBD Engine

STBD Inner Engine

STBD Inner Thrust Vectoring Module

STBD Inner Transmission Control Module

STBD Thrust Vectoring Module

STBD Transmission Control Module

Security Device

Smart Sensor - AirMar

SmartCraft Authentication Device

Stern Thruster

Trackpad

Vessel Control Module

Vessel View Link

Vessel View Mobile

Aux Joystick

Cruise Interface Module

Helm PORT CCM

Helm PORT INNER CCM

Helm PORT Outer CCM

Helm STBD CCM

Helm STBD INNER CCM

Helm STBD Outer CCM

Helm PORT Inner uX

Helm PORT uX

Helm STBD Inner uX

Helm STBD uX

PORT INNER SIM

PORT Inner TCM

PORT Inner TVM

PORT Inner uX

PORT Outer Engine

PORT SIM

PORT TCM

PORT TVM

PORT uX

STBD INNER SIM

STBD Inner TCM

STBD Inner TVM

STBD Inner uX

STBD Outer Engine

STBD SIM

STBD TCM

STBD TVM

STBD uX

...
