KEYMASTER G3
KeyMaster G3 is OBDSTAR’s next-generation intelligent diagnostic and programming tool, building on the brand’s strong foundation in automotive and commercial vehicle technology. It retains OBDSTAR’s core strengths—broad vehicle coverage and versatile functionality—while significantly expanding capabilities to include enhanced programming for electric vehicles, motorcycles, and marine equipment such as jet skis. Designed for efficiency and reliability, KeyMaster G3 is an indispensable assistant for professional locksmiths.
Supported Vehicle Types
Car, HD, E-Car, MOTO, Marine (jet-ski)
Software Functions

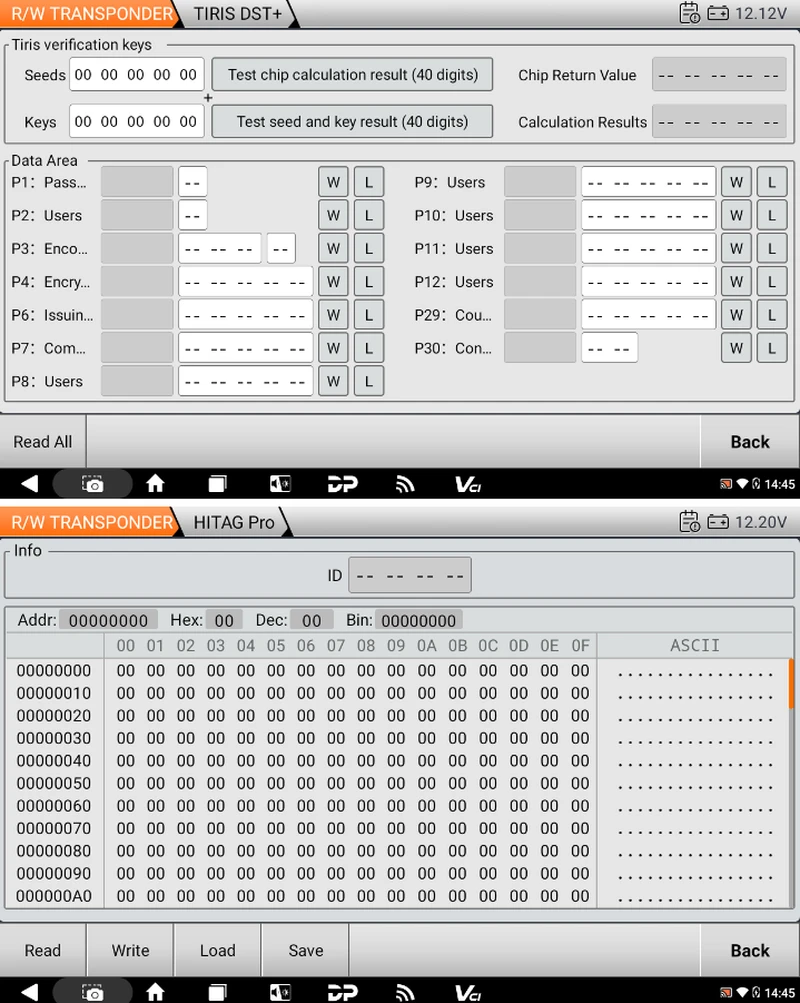

Support Programming IMMO (Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
Hardware Advantages
1. Built in CAN-FD, Low Speed (Fault Tolerant) CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID;
2. Quad-core 64-bit Cortex-A55 2.0GHz, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0.
Advanced Functions
1. Support Car key programming functions for below models:
MQB all keys lost (supports both PROXIMITY AKL and BLADE AKL, synchronization code calculation is unlimited)
FORD/LINCOLN 2021-key programming
NISSAN SENTRA B18, ROGUE T33 all keys lost
...
2. Support MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
3. Support Marine key programming function for BRP, KAWASAKI, YAMAHA and others;
4. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
5. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
6. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
7. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
8. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models;
9. Paid software activation service for ODO METER, ECU Flasher, Crash Reset, Test Platform and the other functions are available.
Function Module List

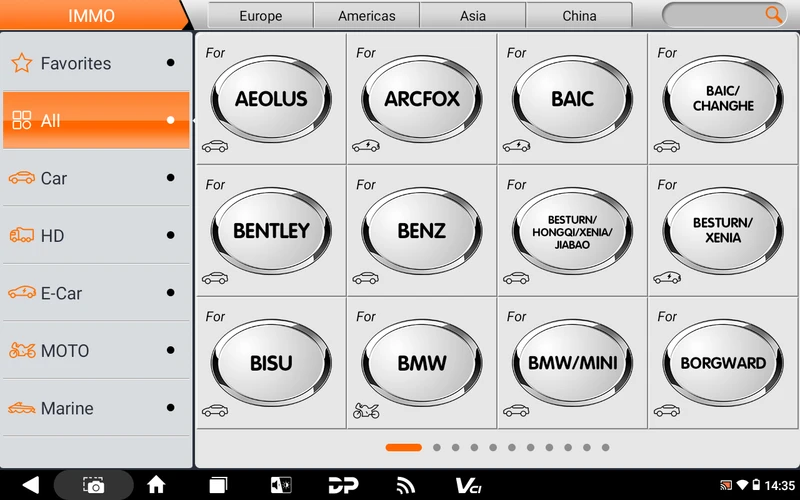

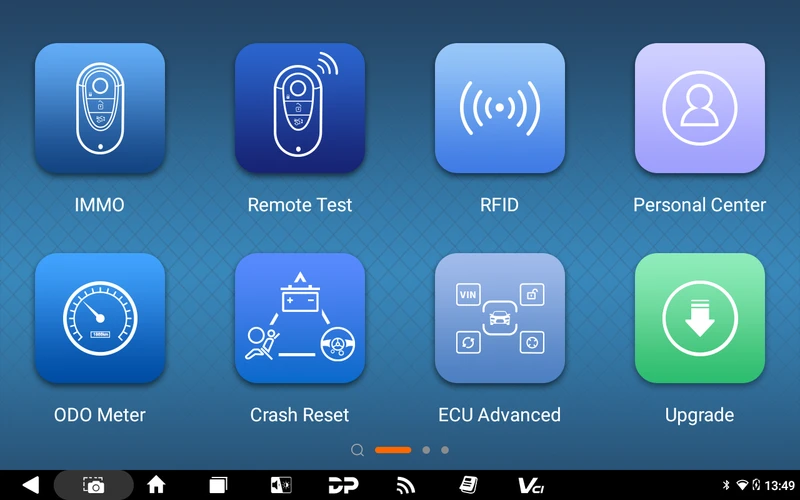

A: IMMO
A1.1: CAR IMMO
A1.2: HD IMMO
A1.3: E-CAR IMMO

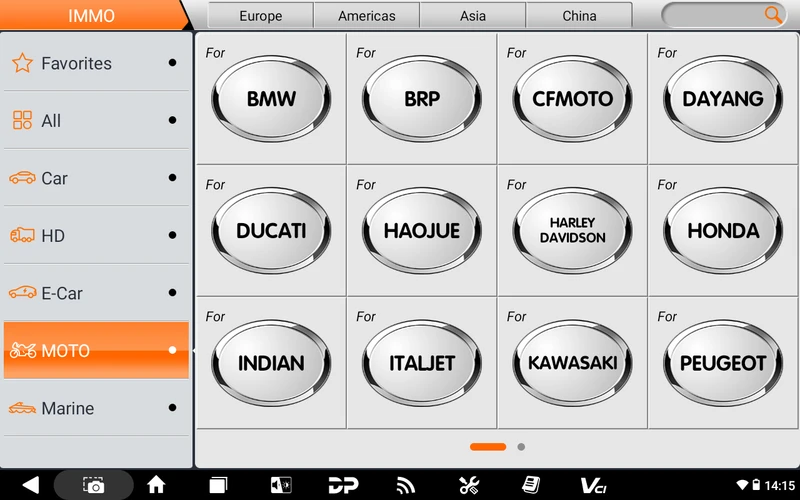

A1.4: MOTO IMMO
A1.5: MARINE IMMO

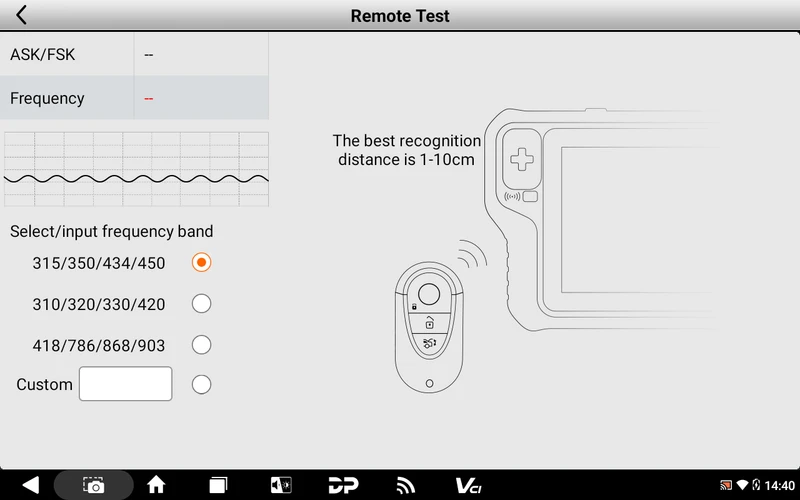

A2.1 Remote Test

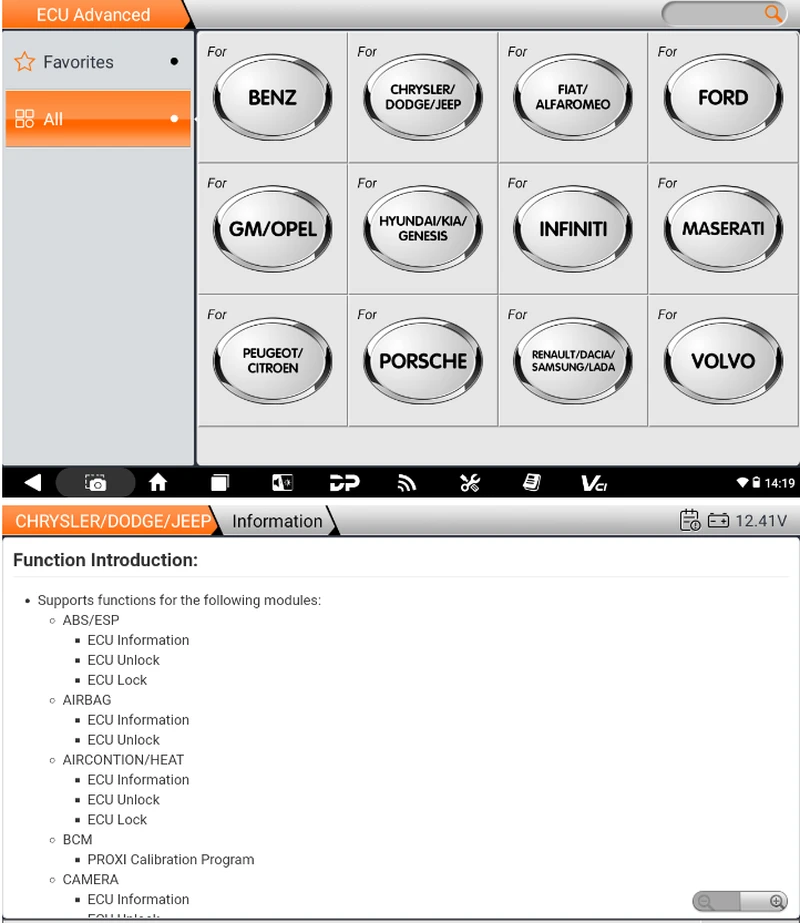

A3.1 ECU Advanced
A4.1 Make Key

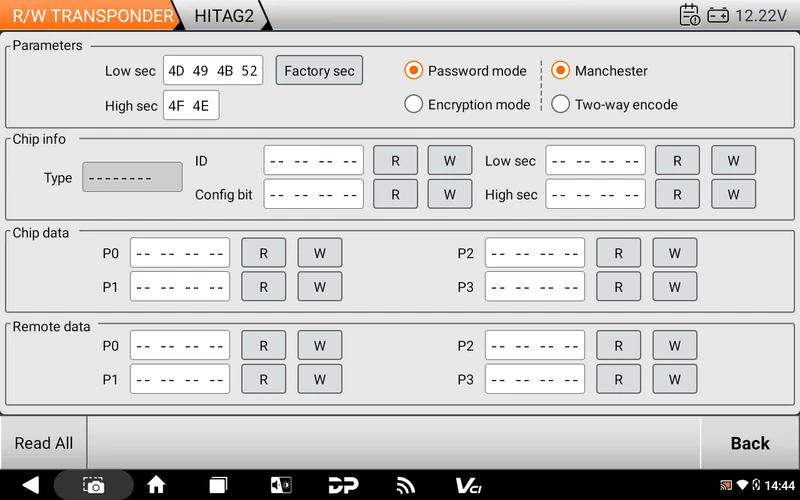

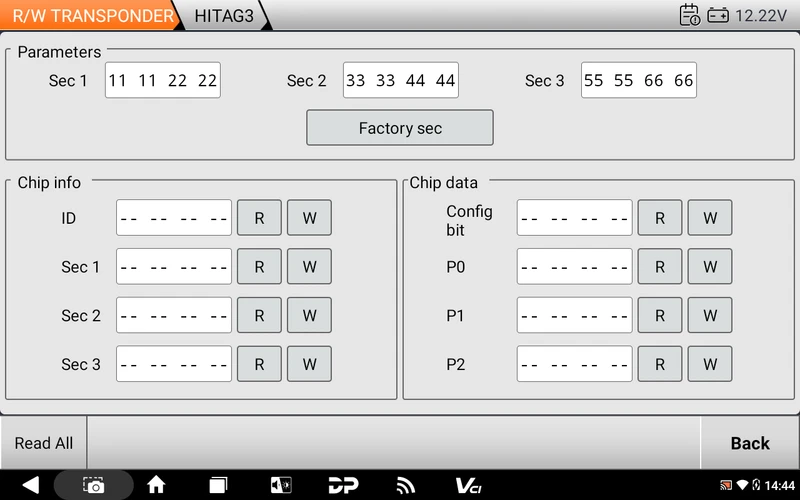

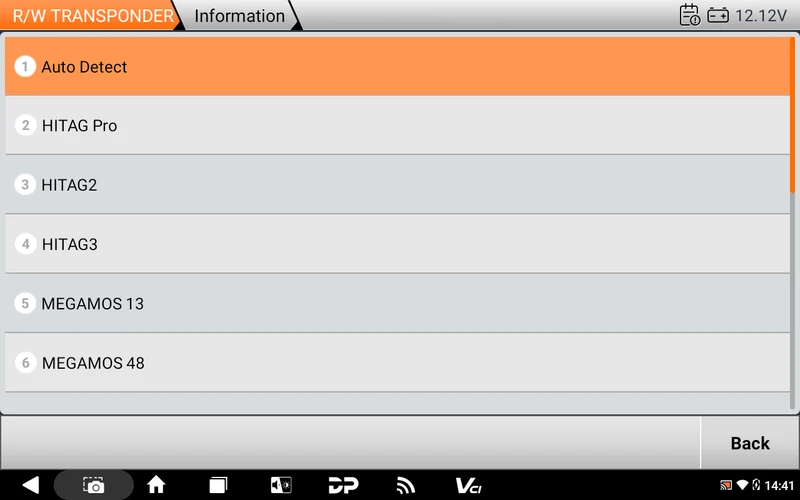

A4.2 R/W Transponder
A4.3 Unlock Smart Key
A5.1 EEPROM/MCU
A5.2 Renew Key
B: ODO METER
B1.1: CAR ODO METER
B1.2: MOTO ODO METER
B2.1: Oil/Service Reset

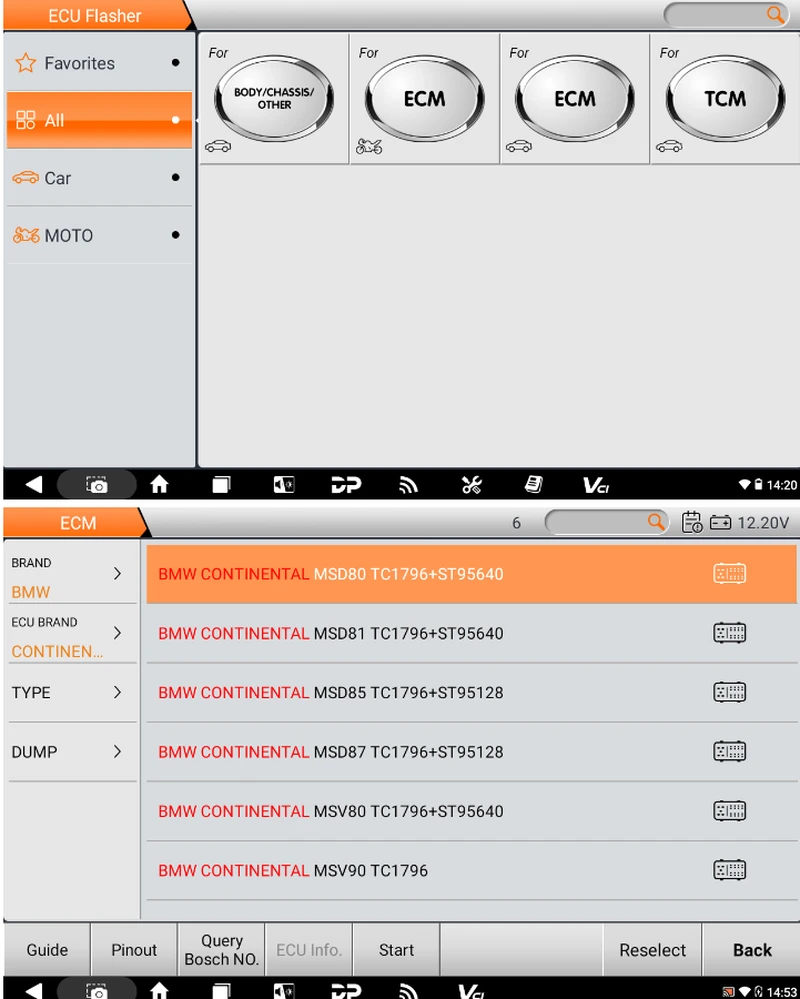

C: ECU Flasher
C1.1: CAR ECM
C1.2 :CAR TCM
C1.3: CAR BODY

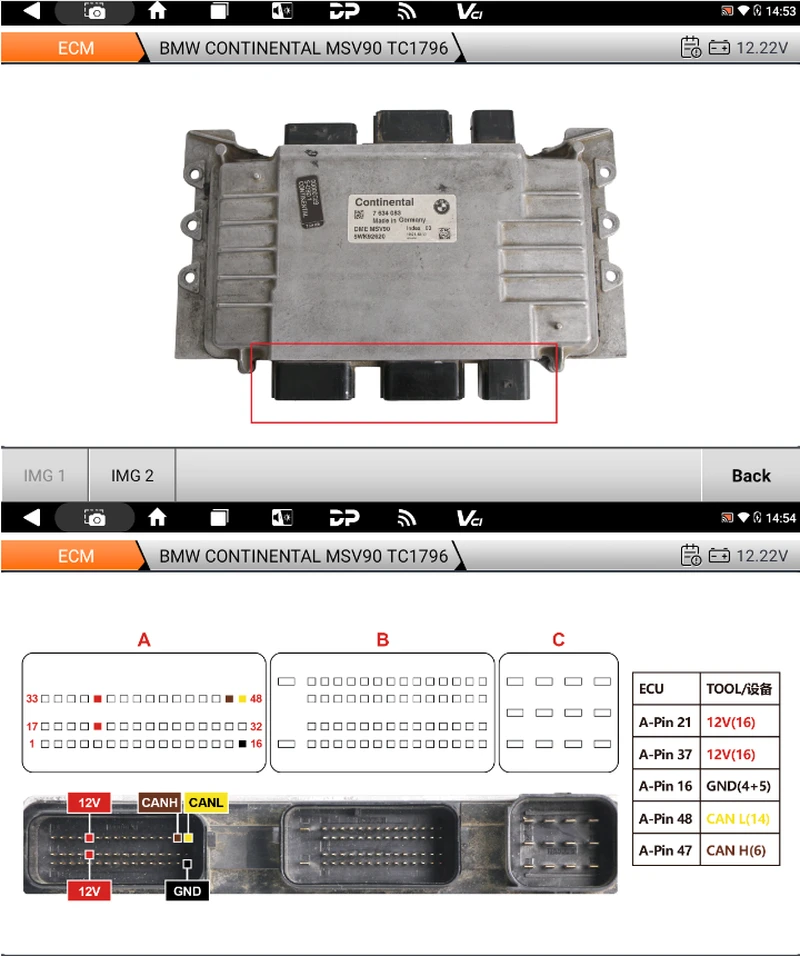

C2.1: MOTO ECM
D: Crash Reset
D1.1: Battery Reset (MVBM)
D1.2: Airbag Reset
D1.3: SAS Reset
E: Test Platform
E1.1: Dash Board
E1.2: E-CAR ABS
E1.3: Gear Lever
E1.4: A/C Panel
E1.5: E-CAR BSG
E1.6: E-CAR MHEV
E1.7: E-CAR AUDIO
E1.8: E-CAR EBA
Any of the above functions can be matched at will.
