It is a professional audio production solution. Supporting ASIO drivers and selected premium analog preamp circuit and ADDA solution, you get an audio processing system flow with ultra-low latency and high-precision sampling rate up to 24bit/96K. Its compact size and high power capacity offered the perfect use for content creators including streamers, podcasters and musicians.
Features:
Selected premium preamp for microphones with one-button control for gain and volume, HI-Z input for instruments with presence control for the best sound you want but effortless adjustment.
USB 2.0 transmission standard on USB port ensures high-speed transmission and ultra-low latency.
High-precision 24bit/96kHz sampling for premium sound quality.
Powerful external playback and internal recording functions, supporting connected live podcasts (provided by the streaming platform) and multi-person live chat broadcasts.

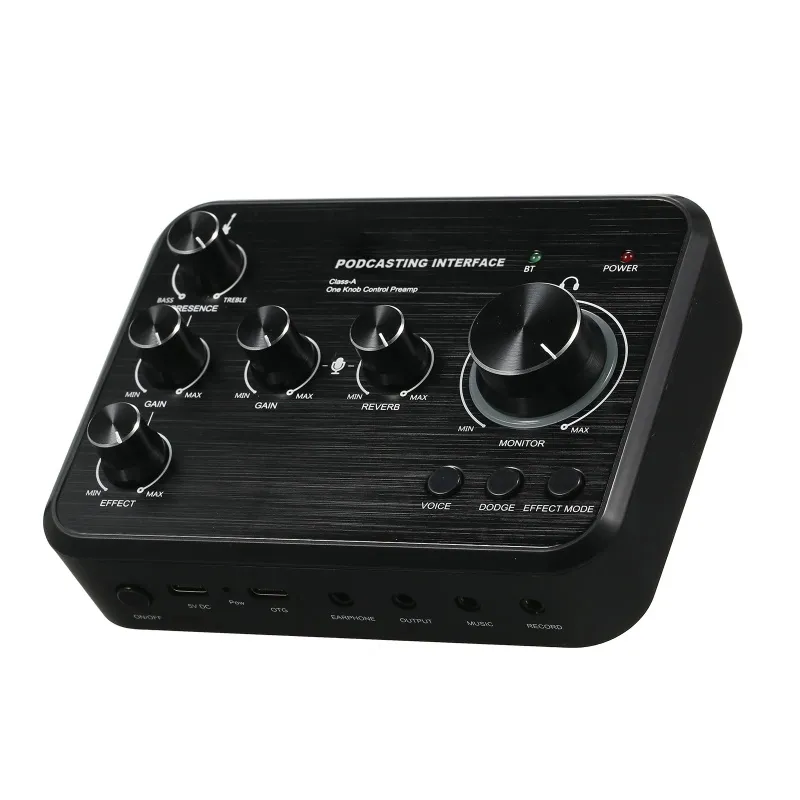

Extended port including 3.5mm headphone and speaker output, microphone and line input with dedicated access to volume control.
Includes combo input (XLR + 6.35 jack) and Hi-Z instrument input (6.35 input), which can be connected to various instruments and microphones on the market.
Includes a Type-C port for portable devices, supporting computers and portable devices (pad and mobile phones) for recording and streaming purposes.
Stereo 3.5mm unbalanced output for external active monitor speaker systems.
Instrument effect including chorus, reverb, delay, flanger, auto-wah.
Control panel made of ABS plastic and aluminum, the sound card is small and lightweight.
Specifications:
Microphone (balanced)
Frequency response: 20 Hz ~ 20 kHz
Dynamic range: 76 dB
Wide input level: -18 dBu
Input resistance: 5.1 K
Gain range: 0 dB ~ 30 dB
Line input 1/2 (balanced)
Wide input level: +2.2 dBu
Input resistance: 10K
Gain range: 0 dB ~ 30 dB
Signal to noise ratio
(A/D): 81 dB
Total harmonic distortion
(D/A): 0.1 %
Ance: 10K
Instrument input (unbalanced)
Frequency response: 20 Hz ~ 20 kHz
Dynamic range: 76 dB
Maximum input level: -20 dBu
Input resistance: 100K
Preamp gain range: 0dB to 36dB
Combo input (XLR/6.35 jack)
48V mic input (balanced)
Frequency response: 20Hz~20kHz
Dynamic range: 76dB
Maximum input level: -18dBu
Input resistance: 5.1K
Preamp gain range: 0dB to 30dB
Main output
Maximum output level: +6dbu
Output resistance: 100Ω
Gain range: 0dB~36dB
Material: ABS + aluminum alloy
Power supply: 5V, 1A
Battery: 2600mAh
Compatible with: Windows XP/Vista/7/8/10
Item size: 140*105*52mm/5.51*4.13*2.05in
Item weight: 307 g
Package Weight: 555g
Package Size: 20 * 17 * 6.3cm / 7.87 * 6.69 * 2.48in

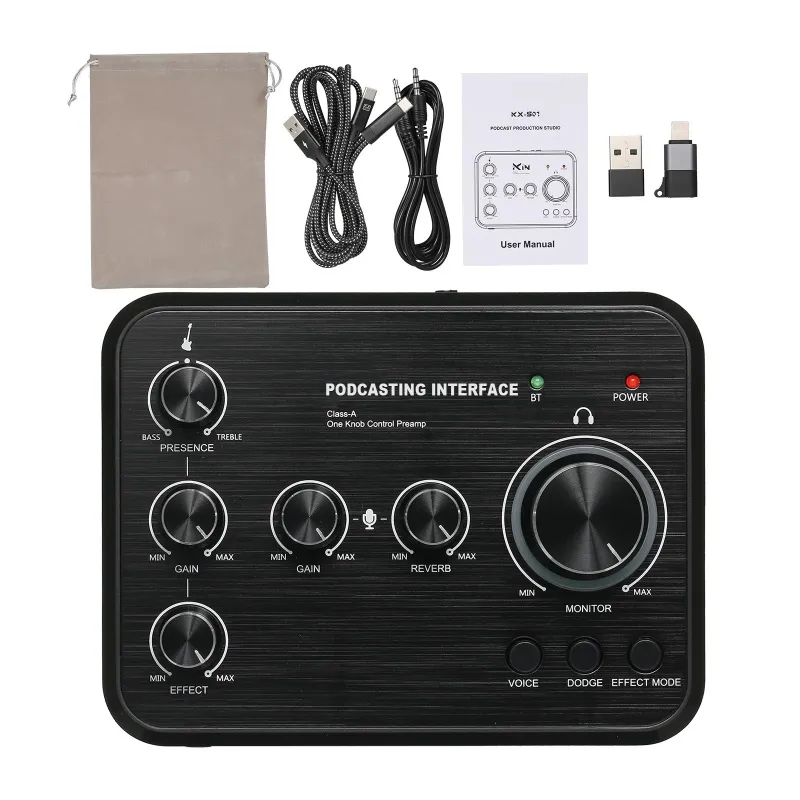

Package List:
1 * Sound Card
1 * Recording Line
1 * OTG Multi-Purpose Data Cable
1 * Type-C Charging Cable
1 * Manual (English)
