Product Overview

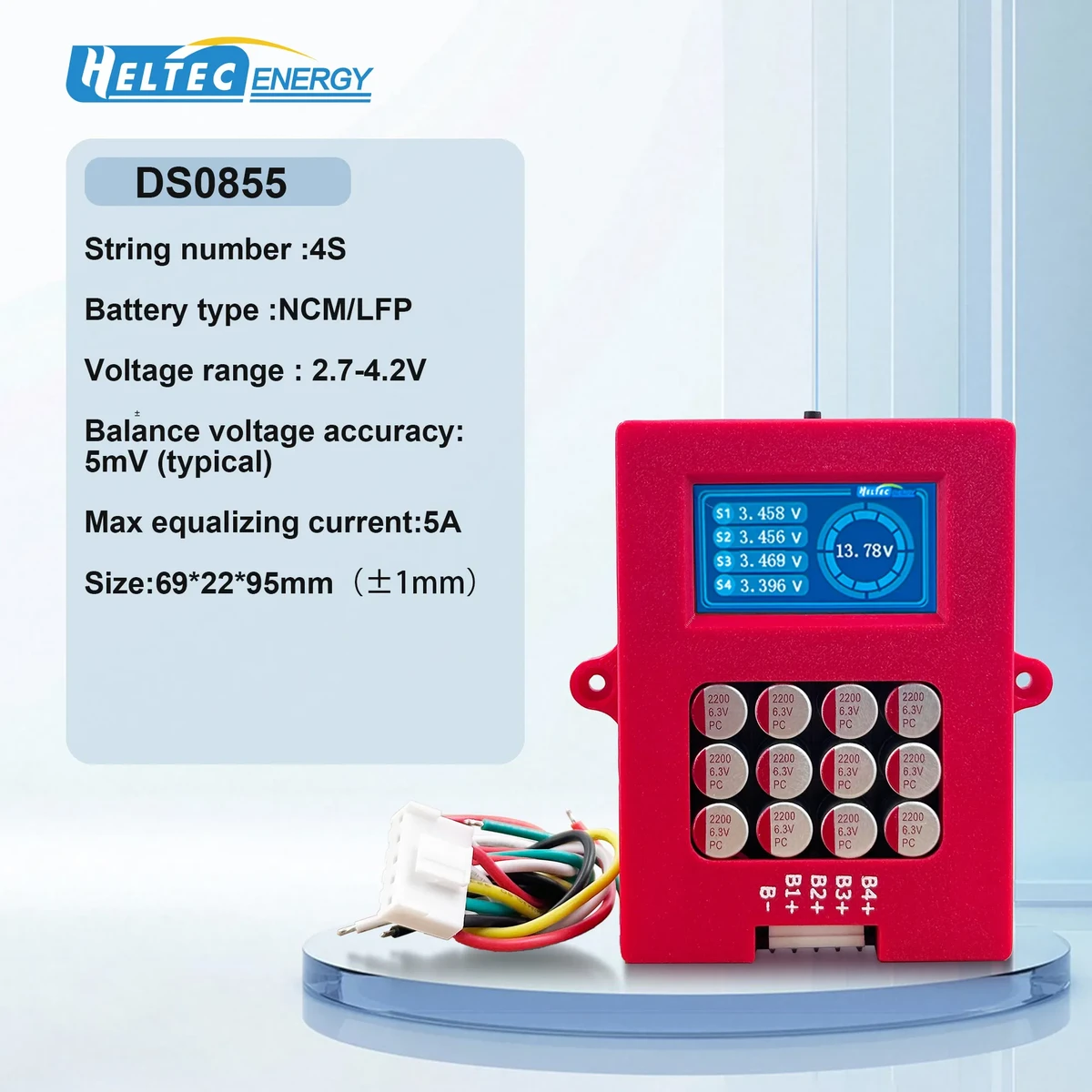

The Active Balancer with Voltage Display Screen (DS0855) is a highly efficient solution for battery balancing, designed to work seamlessly with ternary lithium (NCM) and lithium iron phosphate (LFP) batteries. This device automatically performs full-disk equalization, maintaining balanced voltage across all cells and preventing battery imbalances that can reduce battery life and efficiency.
Key features
Full-Disk Equalization
Active balancing technology that optimizes energy conversion across the entire battery pack simultaneously.
Precise Voltage Control
Achieves voltage balance accuracy up to 5mV, with a minimum balancing voltage difference of 0.01V.
Maximum Balance Current
Can handle a maximum current of 5A when the voltage difference is about 1V, ensuring quick and efficient balancing.
Automatic Low-Voltage Sleep
Stops working and enters sleep mode when the battery voltage falls below 2.7V, protecting the battery from over-discharge.
Real-Time Voltage Display
Monitors and displays the voltage of the entire battery pack as well as individual battery strings, with a display accuracy of ±5mV.
