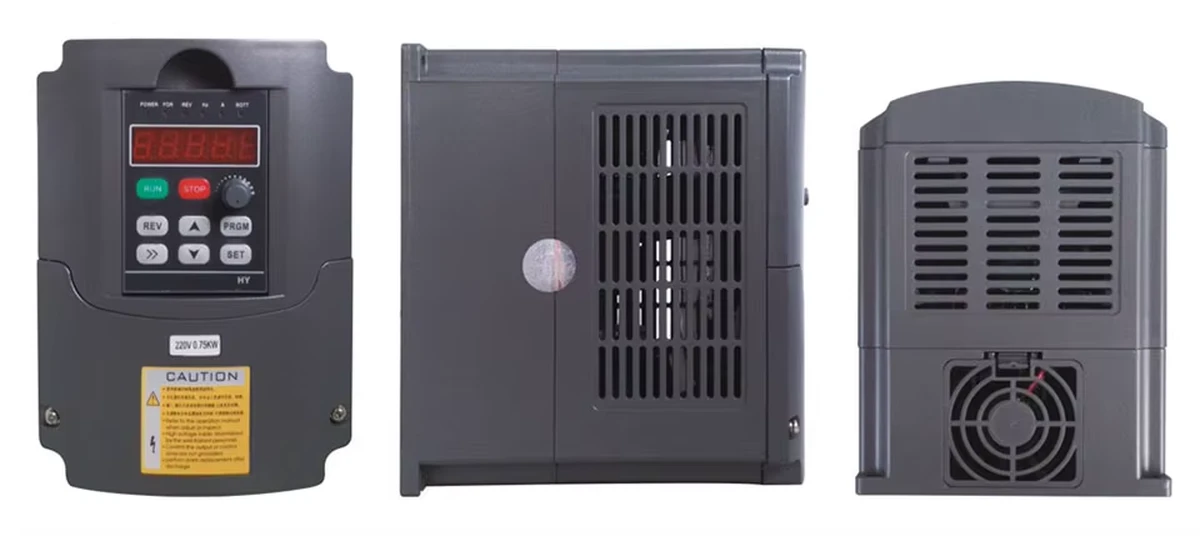

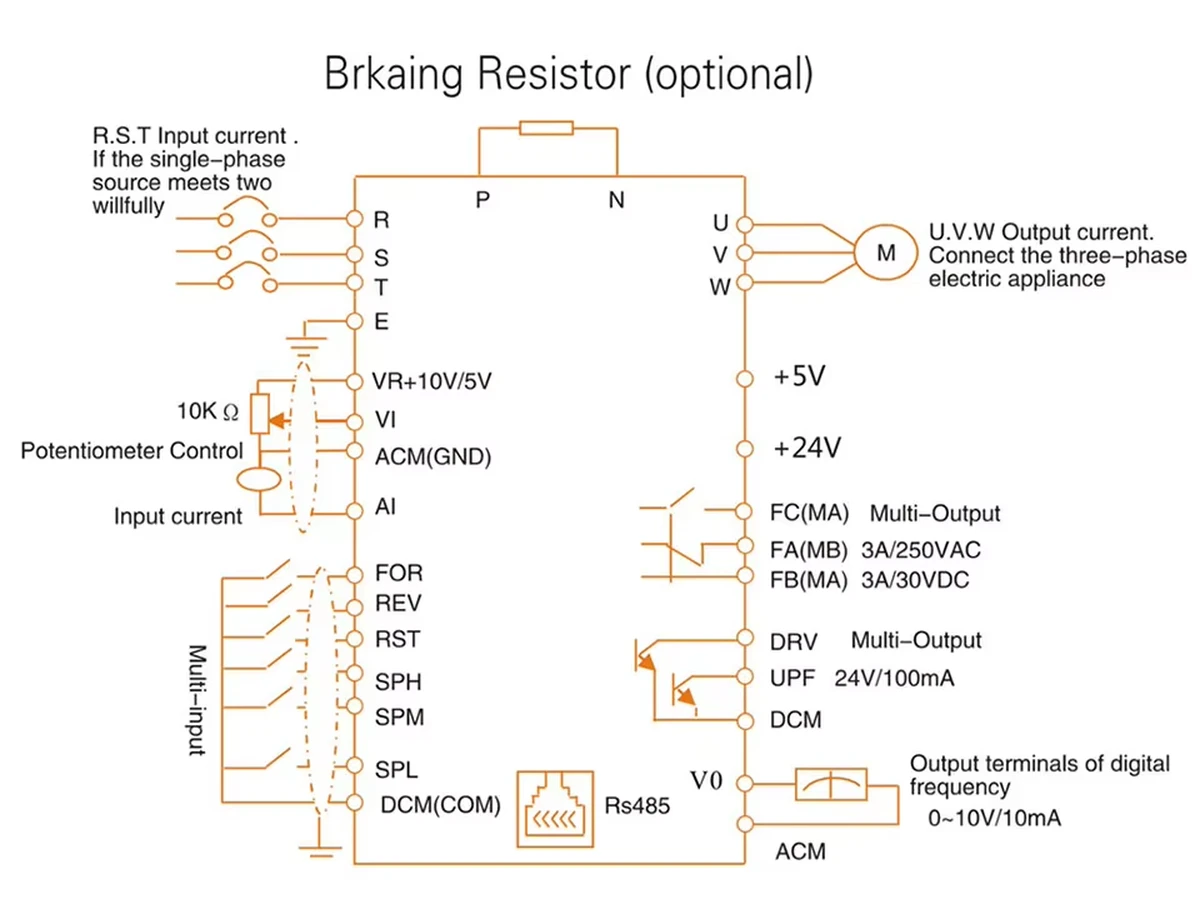

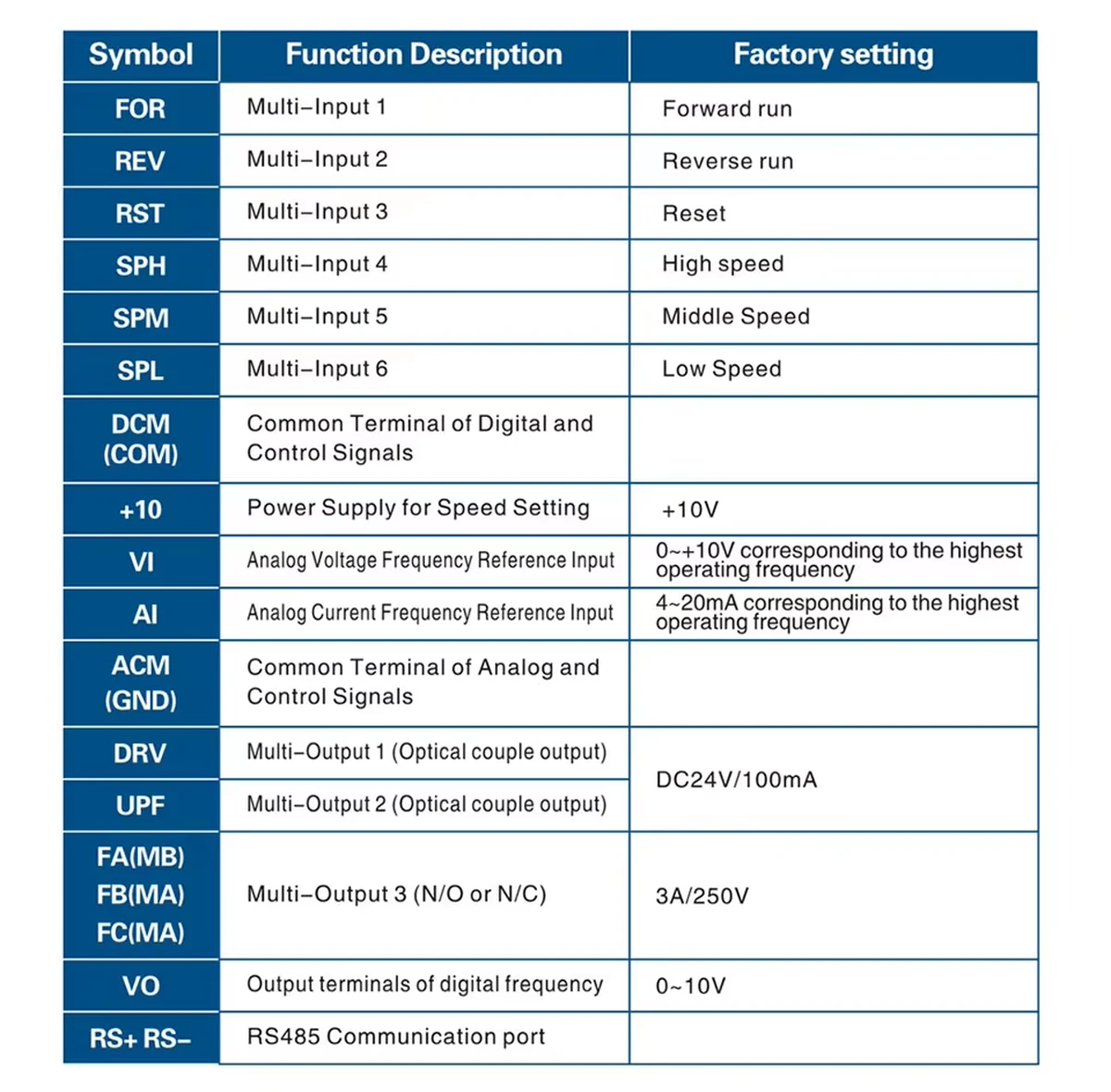

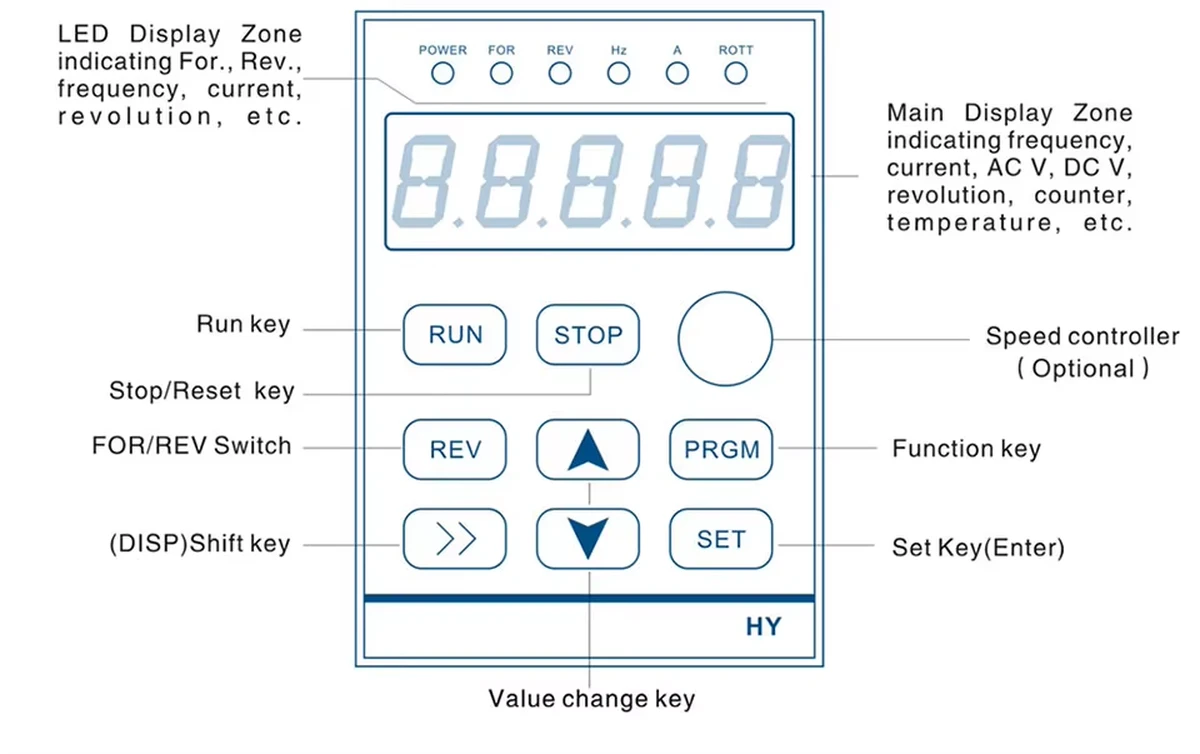

HY 2.2 kW Inverter
Technical Specifications:
Inverter Type: 220 V, 2.2 kW (HY02D223B), 380 V (HY02D243B)
Input Voltage: 220 V (+/- 15%)
(We also offer 110 V/380 V, please choose the one you need)
Output Voltage: 220 V AC
Input Frequency: 48-63 Hz
Output Frequency: 0-400 Hz
Input Phases: 1- or 3-Phase
Output Phases: 3-Phase
Product Features:
PID control; advanced closed-loop PID arithmetic, fast response speed, and high suitability;
The simple PLC function can implement 16-leg speed and inverter control functions;
RS485 communication port adopts international standard MODBUS main circuit control.
With extremely strong anti-jamming capability;
Low output torque 0.5 Hz–150%, low-speed operation capability;
Carrier adjustable up to 16 kHz, completely silent operating environment;
Wide voltage operating range, normal operation at 304 V–456 V;
Automatic Voltage Regulation (AVR) technology ensures the inverter's load capability;
Various control techniques, including synchronization and non-synchronization, enable dynamic, fast starting without brake switching;
With perfect fault protection and short-circuit start protection functions;
Dead-end compensation and automatic torque loop compensation functions can achieve 180% high torque output at a low frequency of 0.25 Hz.
Unique EMC design minimizes power pollution to the inverter.
Comprehensive reinforcement layer for all harsh environments.
Some questions about the inverter
DO NOT install the inverter yourself if you don't know how, as this could easily cause both the spindle and the inverter to burn out.

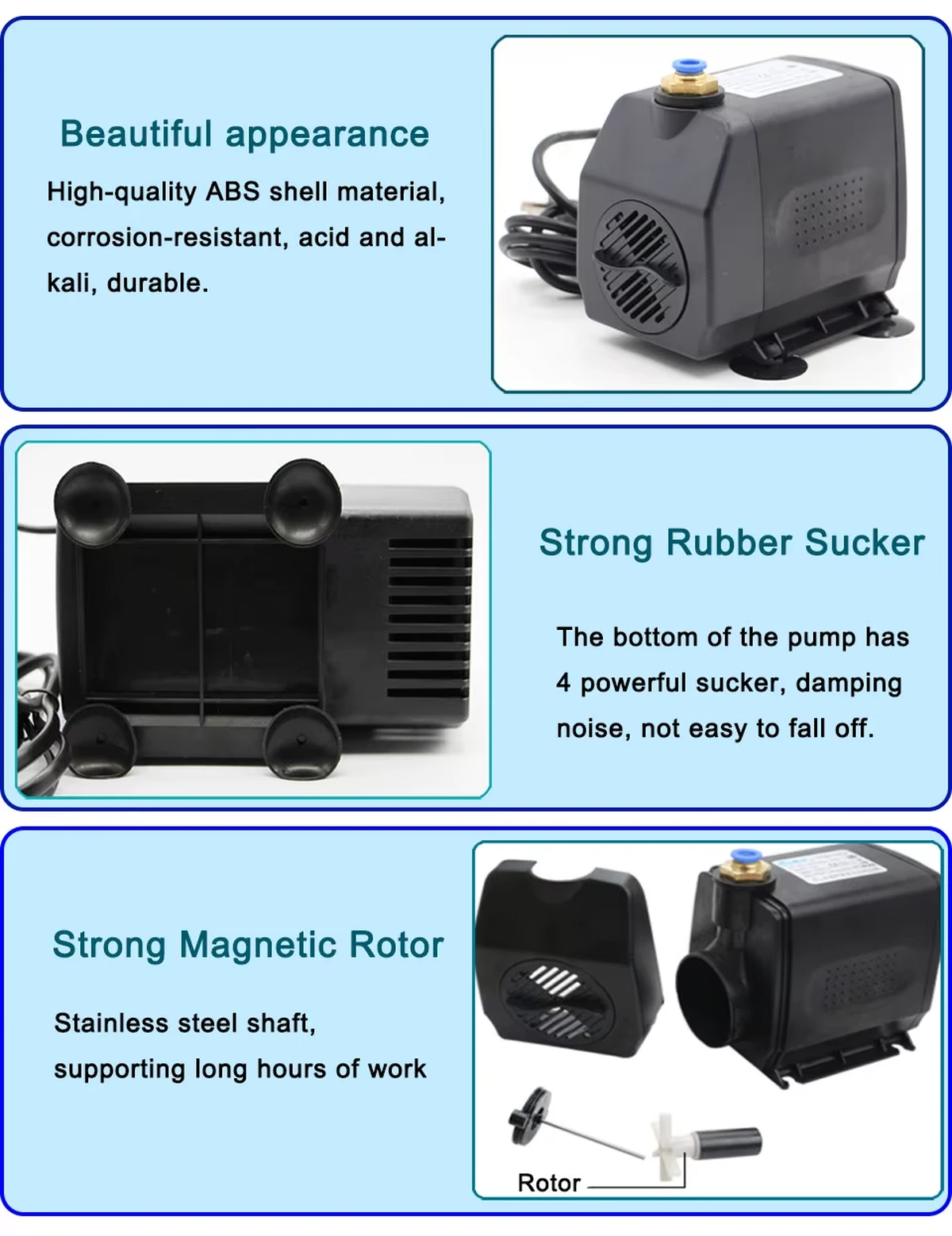

Water Pump
Basic parameters:
Maximum head: 3.2 m;
Power: 75 W;
Maximum flow: 3200 l/h
Plug cable length: 1.4 m
Voltage: 220 V;
Frequency: 50 Hz
Outlet size: 4 and 6 mm;
Dimensions: 145 * 110 * 90 mm

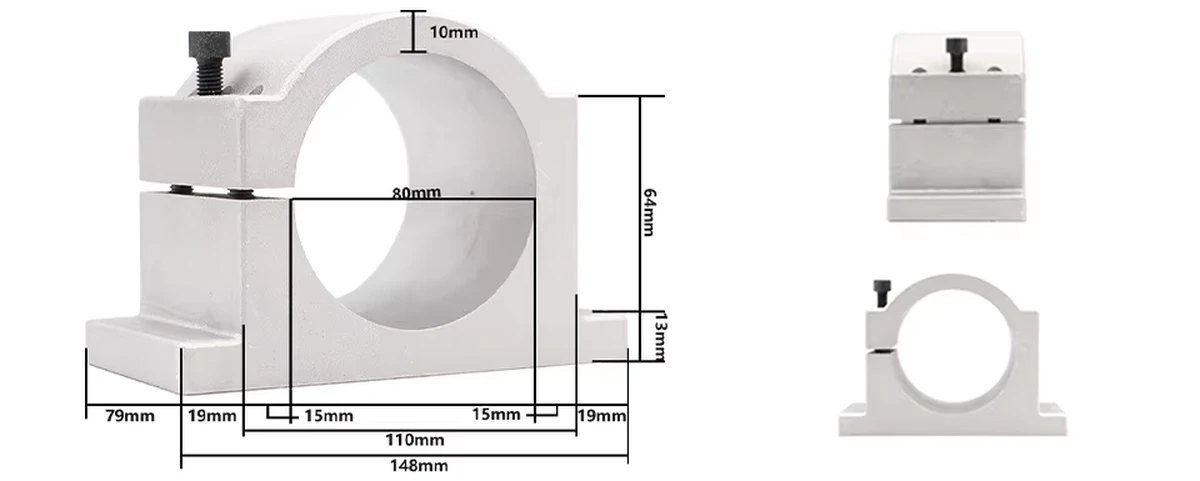

Cast aluminum bracket:
Diameter: 80 mm
Material: Cast aluminum
Features
Compared with aluminum profile fixtures, it is much more accurate and difficult to deform.
The inner wall is very smooth, while the outer walls are sandblasted, relatively fine and uniform, but not very smooth.
The cast aluminum light is much heavier than the aluminum profile light.
Product Description
The cast aluminum bracket is made of high-quality aluminum, which is cast using a special manufacturing process compared to conventional cast aluminum. This product is characterized by toughness, strong impact resistance, high hardness, and strong antioxidant activity.
Use
The cast aluminum bracket is primarily used for mounting accessories, thus ensuring the verticality of balancing and accessories. Accessories improve running accuracy, reduce noise, and reduce accumulated errors.

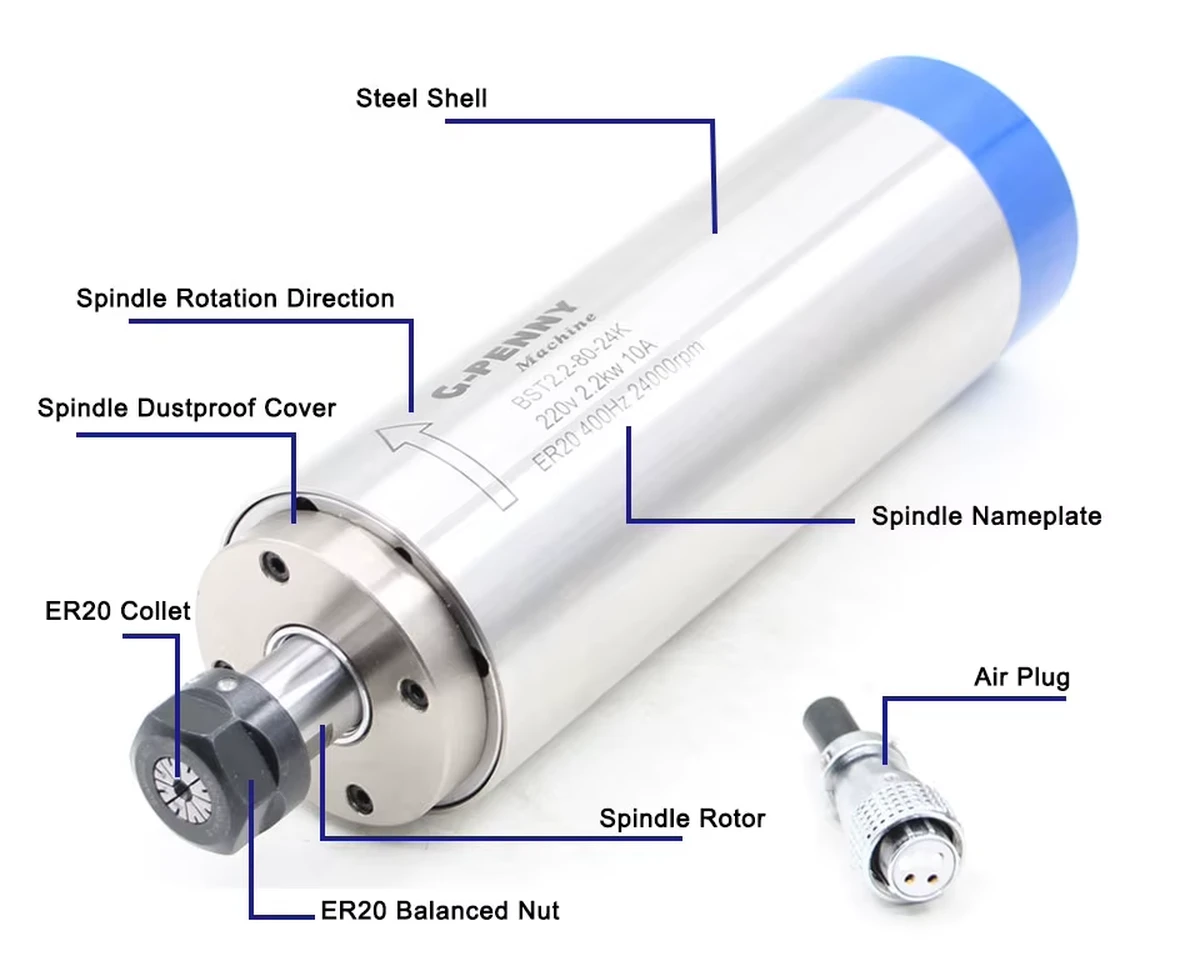

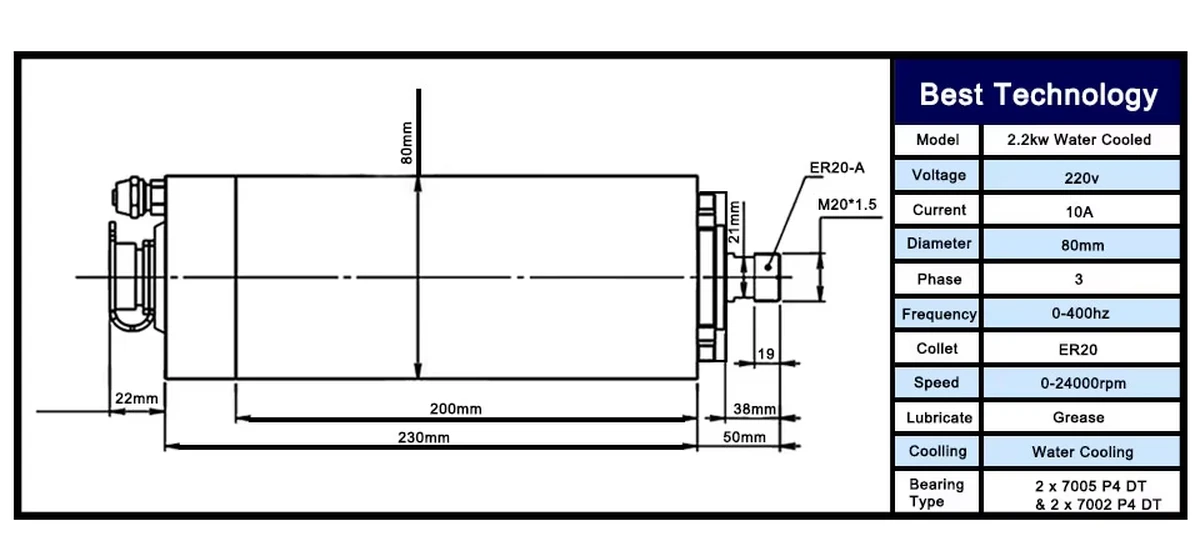

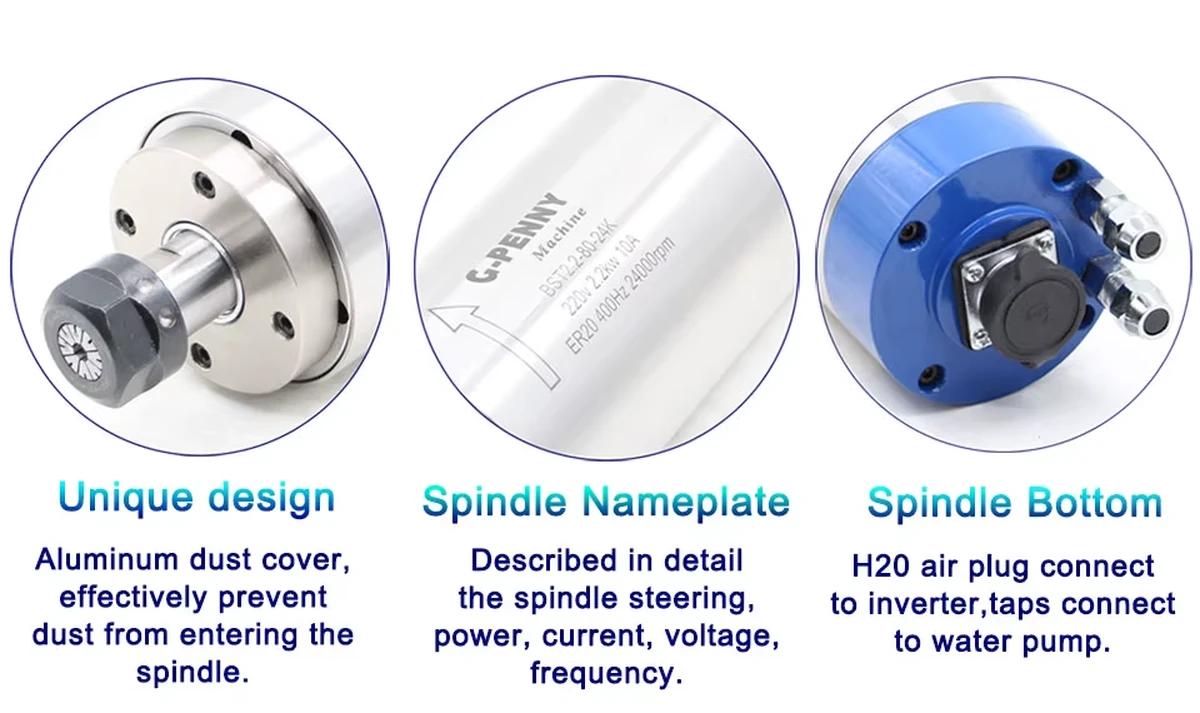

Basic Parameters:
Size: 80 x 230 mm (Center Body Diameter: 80 mm x Length: 230 mm)
Speed Options: 3-phase output inverter. Adjust the inverter frequency to change the spindle speed.
Cooling: Water cooling
Power Interface: Optional waterproof air plug with 4 H2O pins. The air plugs marked "1", "2", "3", "4", "1", "2", "3" are connected to the inverter (U, V, W) and the 4 connected inverter grounds.
Power: 2.2 kW
Voltage: 220 V (We also offer 110 V/380 V, choose the one you need)
Current: 10 A
Frequency: 0-400 Hz
Speed: 0-24000 rpm
Runout: Less than 0.01 mm
Diameter (mm): 80
Bearing Type: 2 x 7005 P4 DT and 2 x 7002 P4 DT
4 fully sealed angular contact bearings
Collet: ER20
Clamping Blade Diameter: 13 mm, 12 mm, 12.7 mm, 11 mm, 10 mm, 9 mm, 8 mm, 7 mm, 6.35 mm, 6 mm, 5 mm, 4 mm, 3.175 mm, 3 mm, 2 mm, 1 mm (standard 6 mm)
Water Cooling ER20 Collet Hook
Grease Lubrication
Main Application: Engraving on wood, bamboo, standard circuit boards, PVC, PMMA, plastic, bamboo, duotone boards (ABS), etc. Non-metal, can also engrave on gold, silver, copper, aluminum, PP, etc. on soft metal surfaces.
Preparation Before Use
The spindle's working temperature is typically -10 ~ 40 ℃.
Before installing the first hand-turned electric spindle axis head, it should feel flexible and non-blocking.
Proper Use
The spindle should be subject to changes in high-speed grease during storage during storage and storage. Customers should run it at low speed for 30 minutes, then increase to 3000 rpm, and then run for 20 minutes each time. The spindle and inverter should work together. The inverter's specifications and parameter settings must match the spindle's parameters.

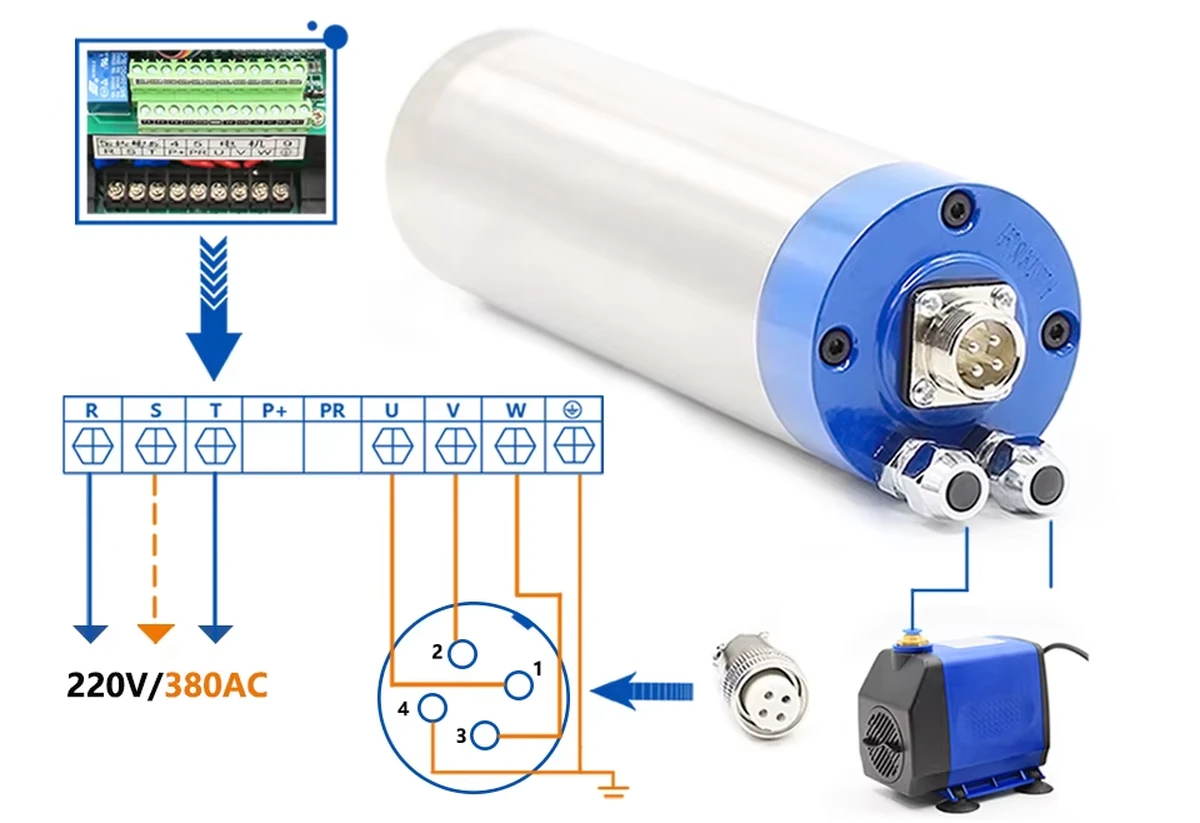

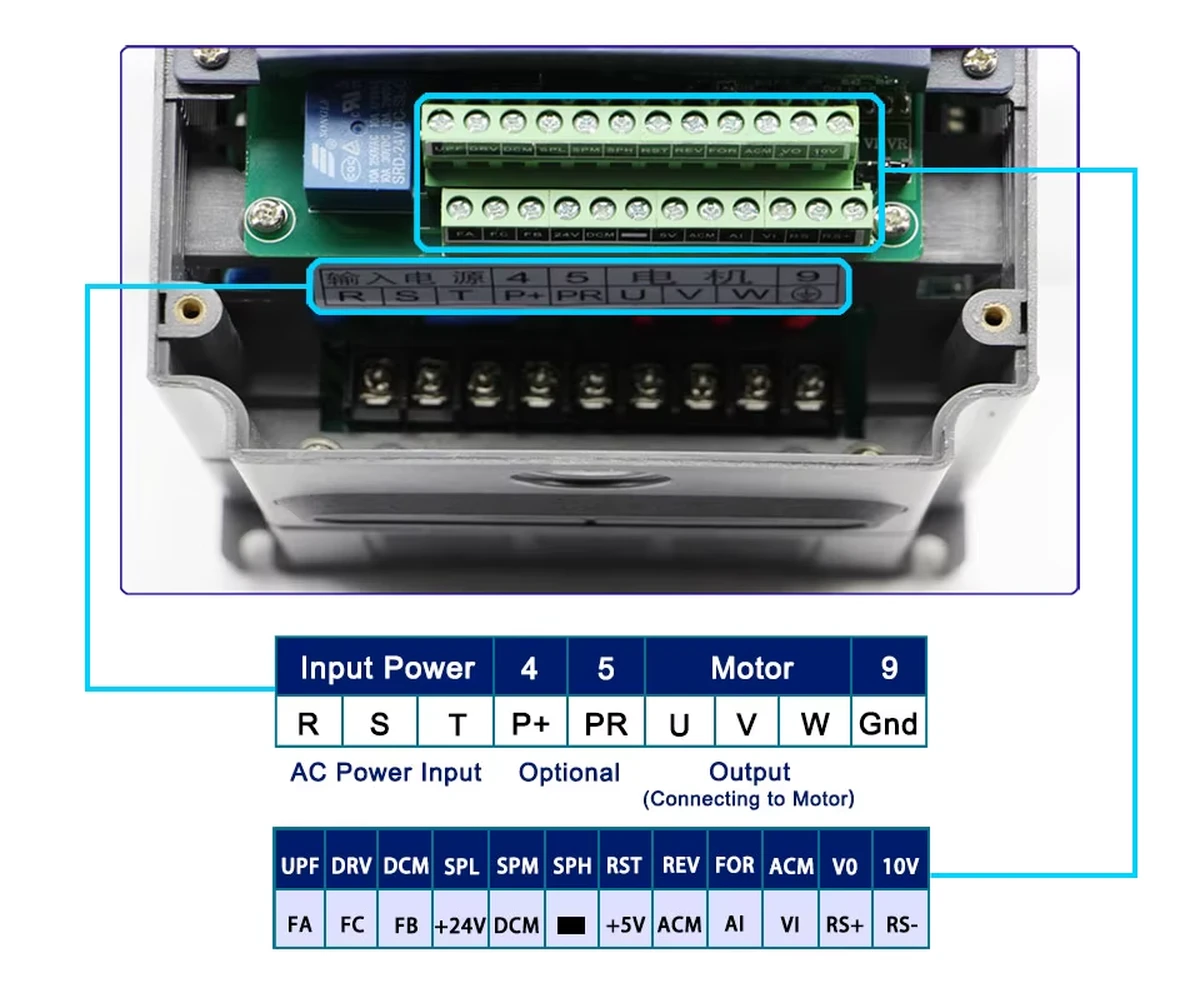

Connect the inverter spindle. The three-phase inverter power cable should be connected. Solder into the connectors 1 (U), 2 (V), 3 (W), and 4 for the ground. After powering on, observe whether the spindle rotation axis indicates the direction consistently. If the inconsistency is detected, immediately shut down the inverter and the two wires of the three-phase power supply connected to the spindle.
Ensure that the cooling system is working properly before using a water-cooled spindle. Run the spindle at low speed for 15–20 minutes every day before use. Ensure that the cutter clamps on the spindle, collet nuts, collets, and cutters are clean enough. The shank inserted into the collet must be larger than 15 mm.
Water-cooled spindles MUST be used with a water pump. Otherwise, the spindle will soon break.
AC spindle motors MUST be used with an inverter. The inverter power must be equal to or greater than the spindle power. Please ensure that the inverter parameters are suitable for the spindle before use. Otherwise, the spindle and inverter will break immediately.
When using the spindle, the noise is not the same as always. STOP the spindle at once. You may need to replace the spindle bearings.
1. Our ceramic ball bearing spindle uses 4 ceramic ball bearings.
2. Ceramic ball bearings are resistant to high temperatures and low heat, typically 3-5 degrees lower than steel ball bearings during use.
3. Ceramic ball bearings have low friction, low noise, and a long service life.
4. If you plan to use the spindle on aluminum and hardwood, ceramic ball bearings are better than steel ball bearings.
Packing List
1 x 2.2 kW ER20 4-Layer Water-Cooled Spindle
1 x 2.2 kW Huanyang Inverter/VFD
1 x 80 mm Spindle Clamp/Bracket
1 x 75 W Water Pump & 5 m Water Pipes
