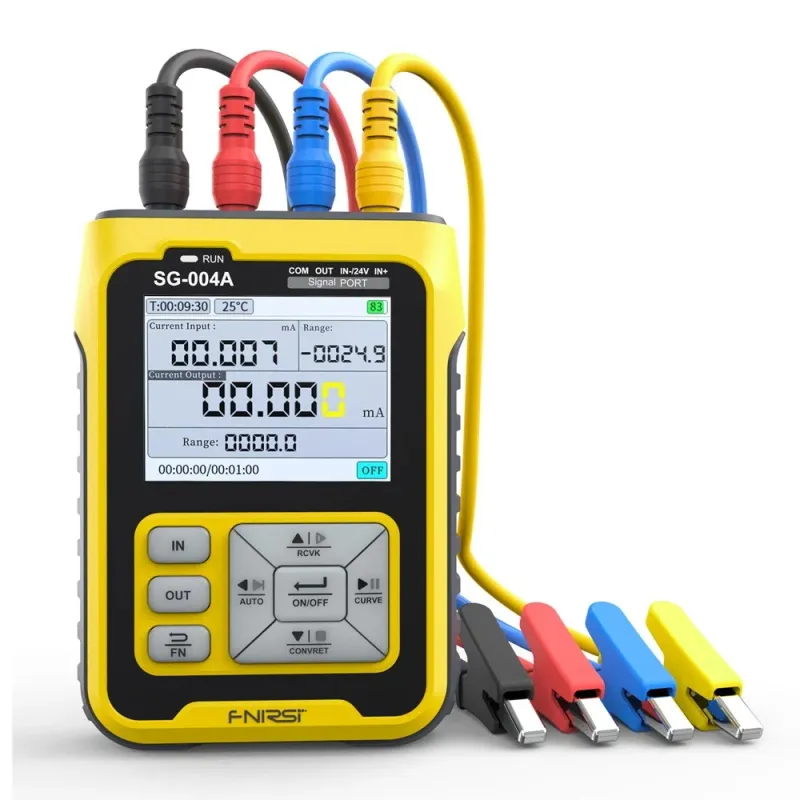

This signal generator has powerful features that you can use. The portable size of this signal generator makes it convenient for daily use and carrying. This tool can be widely used for PLC and DCS system debugging, valve positioner adjustment, inverter detection, etc.
Characteristics:
Portable Size: The small size of this tool is very convenient for daily use, you can easily store it for storage and carrying.

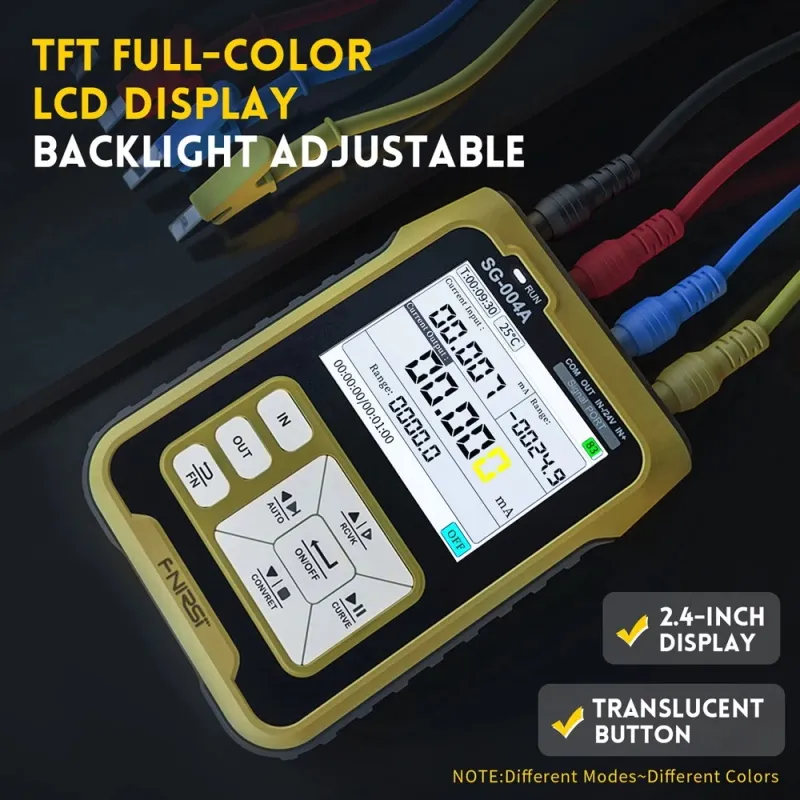

The 2.4-inch backlit display can display data clearly for convenient data reading.

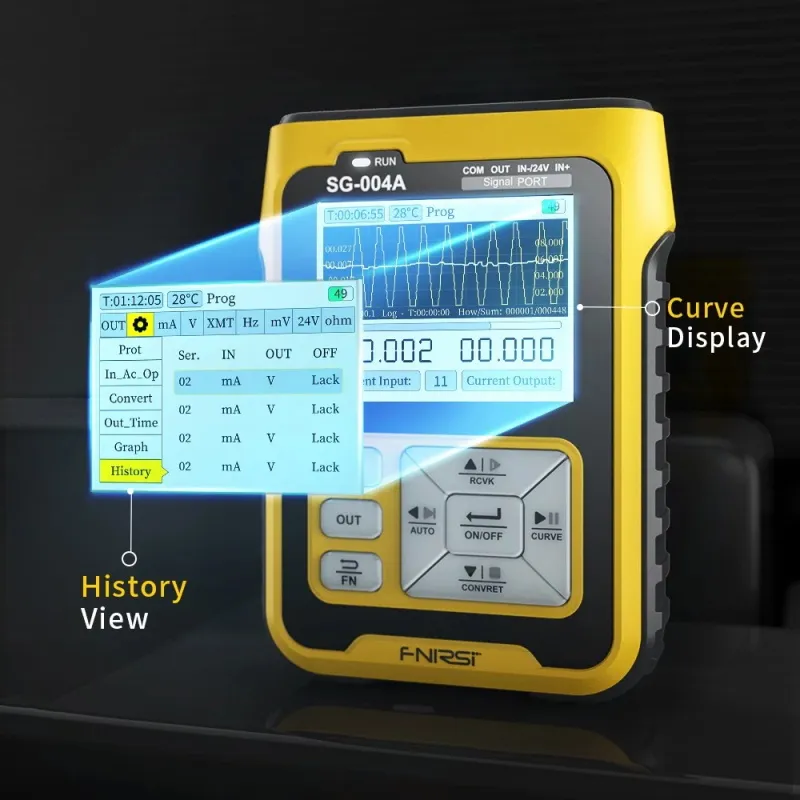

With the function of real-time curve display, the curve can show the change trend of the input or output signal.

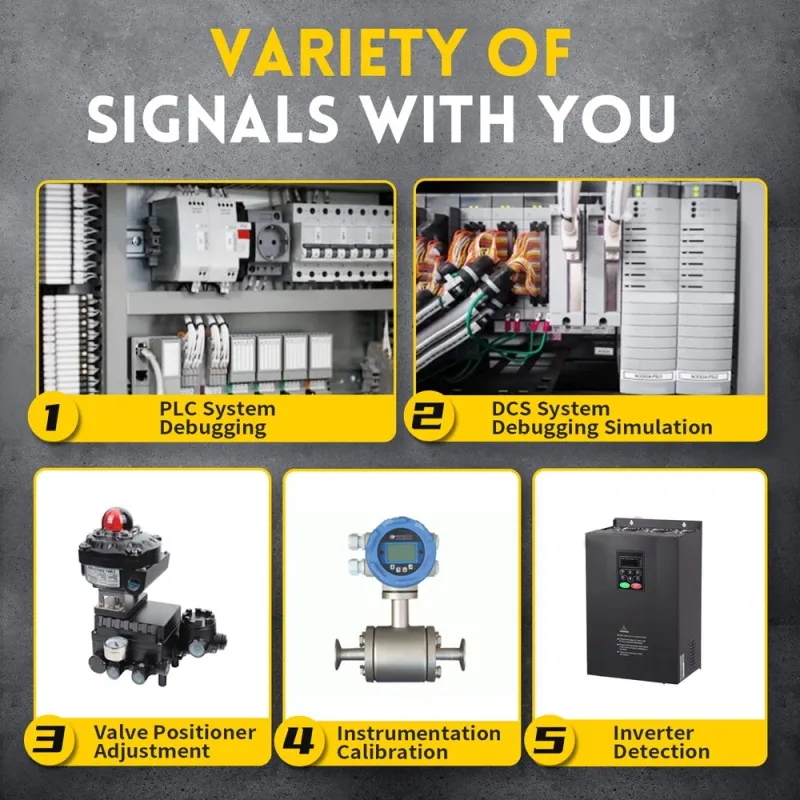

Wide Applications: This tool can be widely used for PLC and DCS system debugging, valve positioner adjustment, inverter detection, etc.
With a history viewer, you can view past data at any time.
The cover is made of ABS material and has silicone protection, which can effectively prevent the instrument from falling and greatly extend the operating time.
Specifications:
Material: Plastic
Battery: 1*Lithium battery, 3000mAh
Current measurement:
Ranges: 0-24mA
Accuracy: ± (0.02% + 0.003)
Resolution: 0.001mA
Internal impedance: 100?
Voltage measurement:
Ranges: 0-24V
Accuracy: ± (0.02% + 0.003)
Resolution: 0.001mA
Internal impedance: 500K
Passive measurement:
Ranges: 0-24mA
Accuracy: ± (0.02% + 0.003)
Resolution: 0.001V
Internal impedance: 100?
24V loop:
Ranges: 0-24mA
Accuracy: ± (0.1% + 0.005)
Resolution: 0.01mA
Internal impedance: 100?
Frequency:
Ranges: 0-9999Hz
Accuracy: ±2%
Resolution: 5 digits
Internal impedance: 1MK
Millivolts:
Ranges: -10~100mV
Accuracy: ± (0.03% + 0.03)
Resolution: 0.01mV
Internal impedance: 2K
Thermocouple (TC-S):
Ranges: 0~1760°C
Accuracy: ±(0.2%+1)
Resolution: 1°C
Internal impedance: 2K
Thermocouple (TC-B):
Ranges: 0~18100°C
Accuracy: ±(0.5%+1)
Resolution: 1°C
Internal impedance: 2K
Thermocouple (TC-E):
Ranges: 0~990°C
Accuracy: ±(0.2%+1)
Resolution: 1°C
Internal impedance: 2K
Thermocouple (TC-K):
Ranges: 0~1320°C
Accuracy: ±(0.2%+1)
Resolution: 1°C
Internal impedance: 2K
Thermocouple (TC-R):
Ranges: 0~1760°C
Accuracy: ±(0.3%+1)
Resolution: 1°C
Internal impedance: 2K
Thermocouple (TC-J):
Ranges: 0~1190°C
Accuracy: ±(0.3%+1)
Resolution: 1°C
Internal impedance: 2K
Thermocouple (TC-T):
Ranges: 0~390°C
Accuracy: ±(0.2%+1)
Resolution: 1°C
Internal impedance: 2K
Thermocouple (TC-N):
Ranges: 0~1290°C
Accuracy: ±(0.2%+1)
Resolution: 1°C
Internal impedance: 2K
Thermocouple (WRe3/25):
Ranges: 0~2320°C
Accuracy: ±(0.2%+1)
Resolution: 1°C
Internal impedance: 2K
Resistance:
Ranges: 0~390?
Accuracy: ±(0.2%+1)
Resolution: 0.1°C
Package size: 150*145*85mm/5.9*5.7*3.3in
Packaging weight: 468.6g / 1.0lb

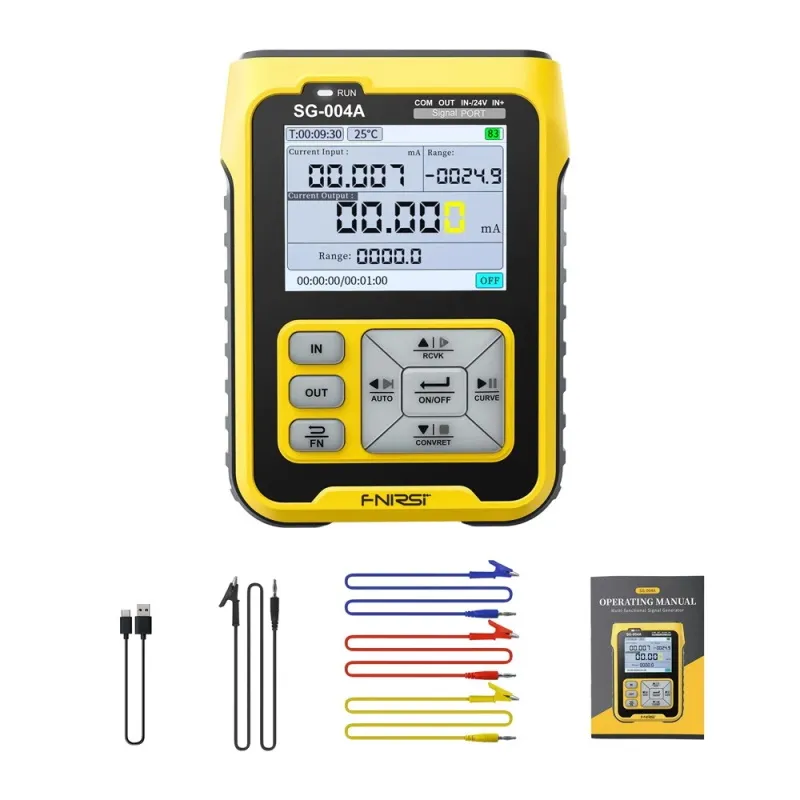

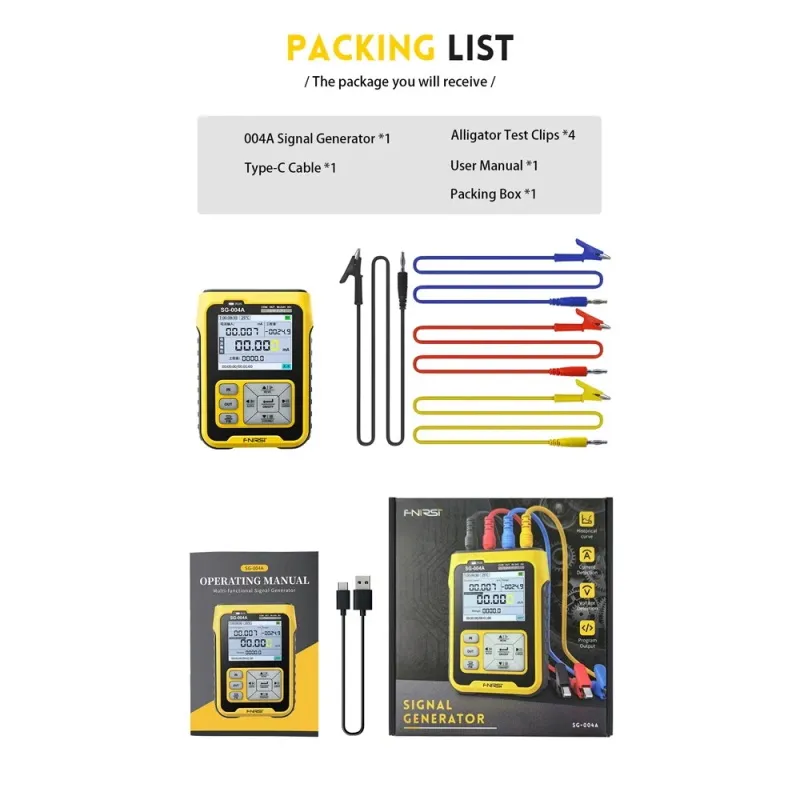

Packing list:
1 * Signal Generator
4 * Test Clips
1 * Type-C Cable
1 * User Manual
