Professional Fresnel Zoom Spotlight for Theatre, Broadcast & Live Events
The Spot Zoom 250W/350W Fresnel LED Spotlight combines high output, exceptional color accuracy, and flexible beam control in a compact and durable design. Equipped with a high-resolution 190mm Fresnel lens, smooth 16-bit dimming, and advanced color management technology, it delivers outstanding performance for theaters, TV studios, film productions, houses of worship, and live events.
Key Features
Available in 250W and 350W versions
High CRI 96 for natural and accurate color reproduction
Adjustable zoom range: 15°–60°
High-resolution 190mm Fresnel glass lens
Smooth 16-bit electronic dimming (0–100%)
DMX512 and RDM control protocols
Auto, Manual, and Programming operation modes
Dual channel modes (7CH / 11CH)
Wide CCT range: 2800K–10000K
Up to 6,400 lux at 5 meters
Flicker-free output for broadcast and film applications
Robust magnesium alloy die-cast housing
Long LED lifetime: ≥30,000 hours

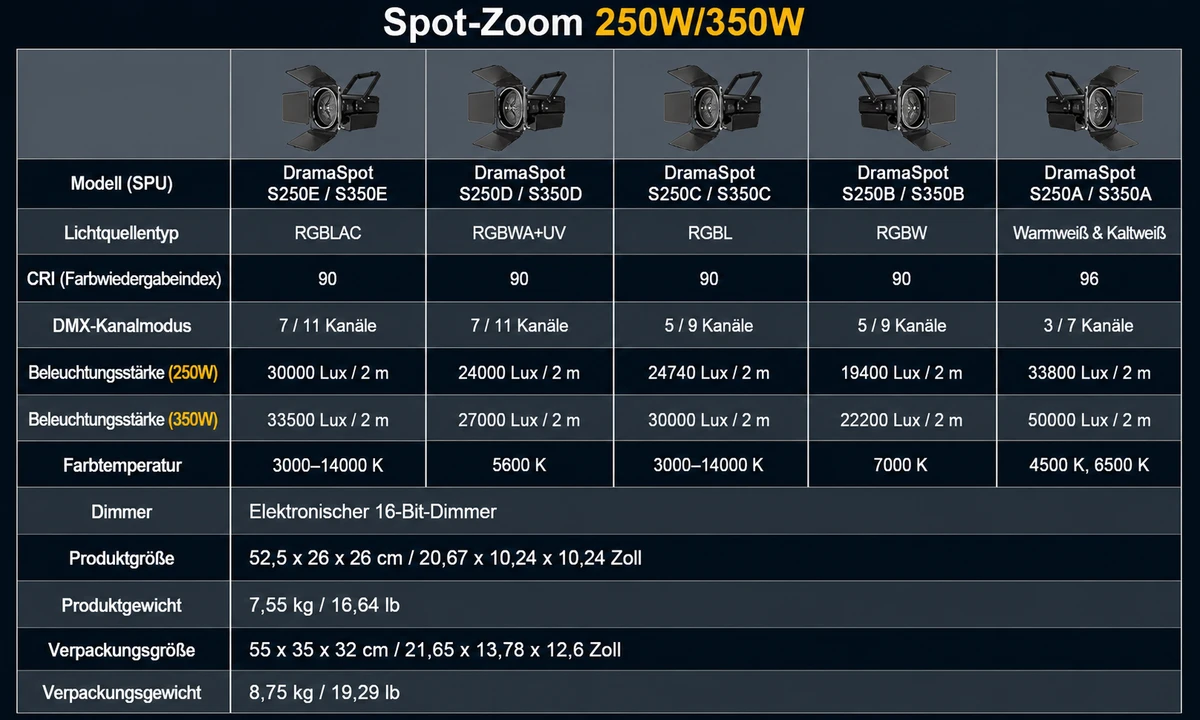

Technical Specifications
Optical System
Light Source: 250W / 350W LED
Beam Angle: 15°–60° Zoom
Lens Diameter: 190mm High-Resolution Fresnel Glass
CRI: ≥96
Illuminance: Up to 6,400 lux @ 5m
Color Temperature Range: 2800K–10000K
Control
Protocols: DMX512, RDM
DMX Connector: 3-pin XLR
Channel Modes: 7CH / 11CH
Operating Modes:
DMX
Auto
Manual
Programming
Dimming
16-bit Electronic Dimmer
Smooth, Flicker-Free 0–100% Dimming
Electrical
Input Voltage:
AC 100–120V, 50/60Hz
AC 200–240V, 50/60Hz
Mechanical
Housing: Full Die-Cast Magnesium Alloy
Noise Level: ≤62dB
Operating Temperature: -10°C to 45°C
Dimensions & Weight
Fixture Size: 52.5 × 26 × 26 cm
Fixture Weight: 7.55 kg
Package Size: 55 × 35 × 32 cm
Shipping Weight: 8.75 kg
Applications
Designed for professional lighting environments requiring accurate color rendering and precise beam control:
Theatre & Stage Productions
Churches & Houses of Worship
Television Studios
Film & Video Production
Conferences & Corporate Events
Live Performances
Educational Institutions
High CRI Performance
With a CRI of 96, the Spot Zoom ensures faithful color reproduction and natural skin tones, making it ideal for broadcast, theatrical performances, and any application where color accuracy is critical.
Precision Zoom & Smooth Dimming
The adjustable 15°–60° zoom range allows users to easily switch between focused spotlighting and wide-area coverage, while the 16-bit dimming system provides seamless brightness transitions without visible stepping or flicker.
